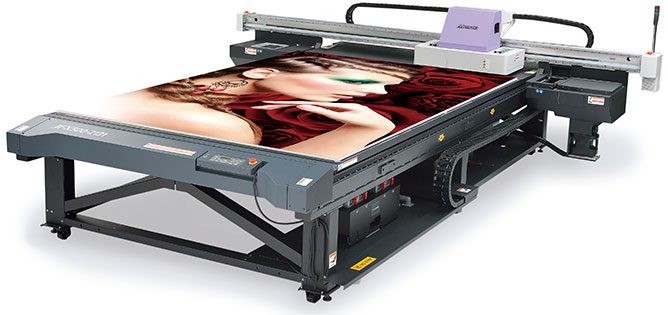

JFX500-2131

Ultra-High Speed, High Precision Flatbed UV LED Printer

The new JFX500-2131 from Mimaki smashes all established records for a grand format flatbed UV LED printer, with production speeds of up to 60sqm/h, delivering unbelievably high quality, right down to 2 point text on a massive 210 x 310 cm print area.

High print speeds
Large printable area
Multiple ink options
  • Amazing print speeds up to 60sqm/h with CMYK and 45sqm/h with white ink printing
  • Maximum print size of 2.1 x 3.1 m
  • Intelligent Microstepping System (IMS) for accurate prints, even 2pt characters can be legibly printed
  • Variable dot printing with a minimum size of 7 picolitre
  • Mimaki Advance Pass System reduces bandings
  • Mimaki Circulation Technology prevents pigment sedimentation of white ink
  • Reliable nozzle recovery function
  • Vacuum unit and high performance Rasterlink RIP software included as standard

Create…

Art Reproduction, Backlit Graphics, Construction Signs, Displays, Exhibition Signs, Rigid Packaging, Lenticular (printing with 3D effects),ID Cards, Logos (3D), Operation Panels, Promotional Items, Relational Gifts, Accessories and much more…

Substrates

Acrylics, polycarbonates, PVC, glass, aluminium, Metal, Polyesters, Foam Board, Styrene, Wood, Stone

Attention should be paid to ink adhesion, even though it will print onto almost any substrate, levels of adhesion do differ between materials.

Specifications of JFX500-2131


Print head On-demand piezo head (6 print heads with 3 staggered configurations)
Maximum print area 2100 x 3100 mm
Printing resolutions 300 dpi, 600 dpi, 900 dpi, 1200 dpi
Ink type LUS-120 Superior durability and flexibility (CMYK + W)
LUS-150 Stretchable (150%) UV ink (CMYK + W)
LUS-200 Stretchable (200%) UV ink (CMYK + W)
LH-100 Hard UV Ink (CMYK + W)
Ink supply system Supplied by 2L ink station
Media Size 2100 x 3100 mm (w x d)
Media thickness Up to 50 mm
Media weight Up to 50 kg / sqm
Media set device Air suction by vacuum
UV device Equipped with UV LED
Interface USB 2.0
Power consumption Less than 2.4 kVA
Dimensions (w x d x h) 4100 mm x 4462 mm x 1490 mm
Weight 1353 kg










All JFX500-2131 inks are GREENGUARD Gold certified.



Features of JFX500-2131

UV LED Curing Technology

The Mimaki JFX500-2131 employs UV LED printing technology, which does not generate excessive heat, allowing the machine to print directly on a wide range of substrates, including heat-sensitive materials, without any media deformation.
Aqueous or solvent inks require post printing drying. This is eliminated using UV technology and consequently, the media is ready for laminating immediately after printing. The job turnaround time from printing to processing is shortened and improves work efficiency and productivity.


Amazing Print Speeds

Equipped with the new developed print head (6 print heads with 3 staggered configuration), the JFX500-2131 achieves production speeds of up to 60sqm/h.

JFX500-2131 speeds


Outstanding Print Quality

Intelligent Microstepping System (IMS)
The JFX500-2131 includes two units of Mimaki’s unique and highly-accurate linear scales controlled by an Intelligent Microstepping System (IMS) for fine step accuracy and dot placement. This results in less banding and the ability to print down to 2-point text with stunning clarity.

High Resolution up to 1200dpi and Variable Drops
High image quality is achieved by utilising a resolution up to 1200 x 1200 dpi and variable dot sizes. The minimum drop size is an fine 7 pico-liters that produces a smooth, natural gradation without granular appearance even in 4-colour mode.


Multiple Ink Options

Four types of ink are offered with the JFX500-2131.

  • LUS-120 (LED UV ink): The newly developed, high-performance LUS-120 UV curing ink possesses superior durability and flexibility. These two opposite properties provide beautiful and durable printing on flexible banner materials that cannot be laminated.
  • LUS-150 (LED UV Stretchable ink): The newly formulated LUS-150 ink offers less curing times resulting in a less tactile sticky feeling and it is flexible up to 150%.
  • LUS-200 (LED UV Stretchable ink): A flexible UV ink has 200% stretchability. One of ideal applications is a vehicle wrapping that requires excellent flexibility to apply print films.
  • LH-100 (LED UV Hard Ink): The JFX500-2131 also operates with Mimaki’s LH-100 inks. The LH-100 ink offers higher scratch and chemical resistance as well as colour reproduction.

Simultaneous white ink under and overprint
Print outstandingly colourful, bright images on transparent and coloured substrates with white ink under or overprint without slowing down the print speed.
White ink under and overprint
A. 4/6 colours only
Without white ink as a basis for overprinting, the colours are not as vivid as they should be.
B. 4/6 colours + white
With the white ink overlay print, the images are bright and vivid.


Mimaki Advanced Pass Systems (MAPS)

Mimaki Advanced Pass Systems (MAPS)
The Mimaki Advanced Pass System (MAPS) effectively reduces bandings with multiple printing passes, using a gradational mask pattern. When this option is selected, UV curing is performed more gradually which diminishes any appearance of banding





Other Useful Functions to Ensure Quality

  • Layout Pins for Trouble-Free Media Alignment. The JFX500-2131 is equipped with pins and a scale that simplifies the alignment procedures required in flatbed printing. Simply fix the substrate to layout pins, check placement with the scale, and edit the design data or printer settings accordingly.

Layout Pins for Trouble-Free Media Alignment

  • Nozzle Recovery Function temporarily restores print quality, reducing potential downtime if maintenance issue should arise.
  • Mimaki Circulation Technology(MCT) prevents pigment sedimentation of white ink, reducing ink waste.

Environmentally-friendly Technology

Mimaki ECO icon

  • UV LEDs have longer life and consume less energy than conventional UV lamps
  • Less transfer waste and no wasted inventory by printing on-demand, direct-to-substrate
  • No noticeable odour and no excessive noise










All JFX500-2131 inks are GREENGUARD Gold certified.
