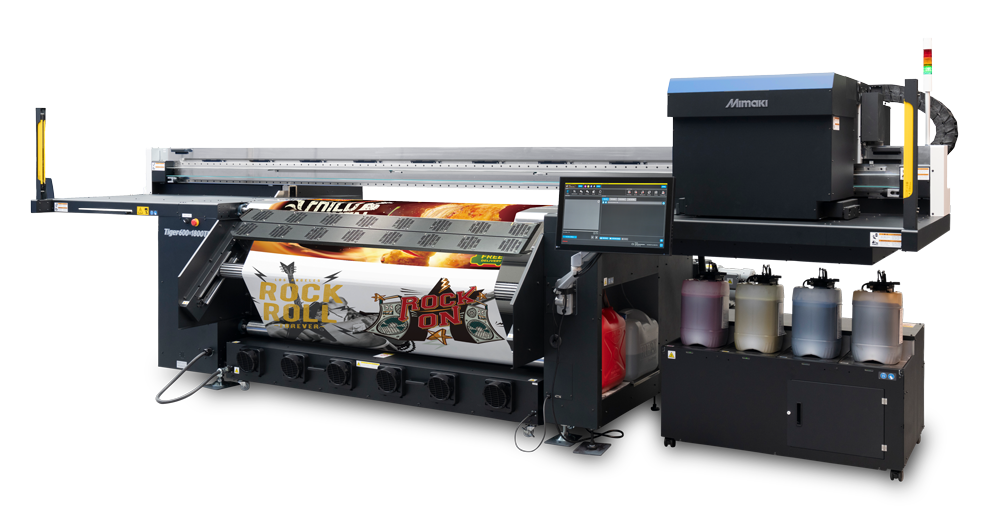

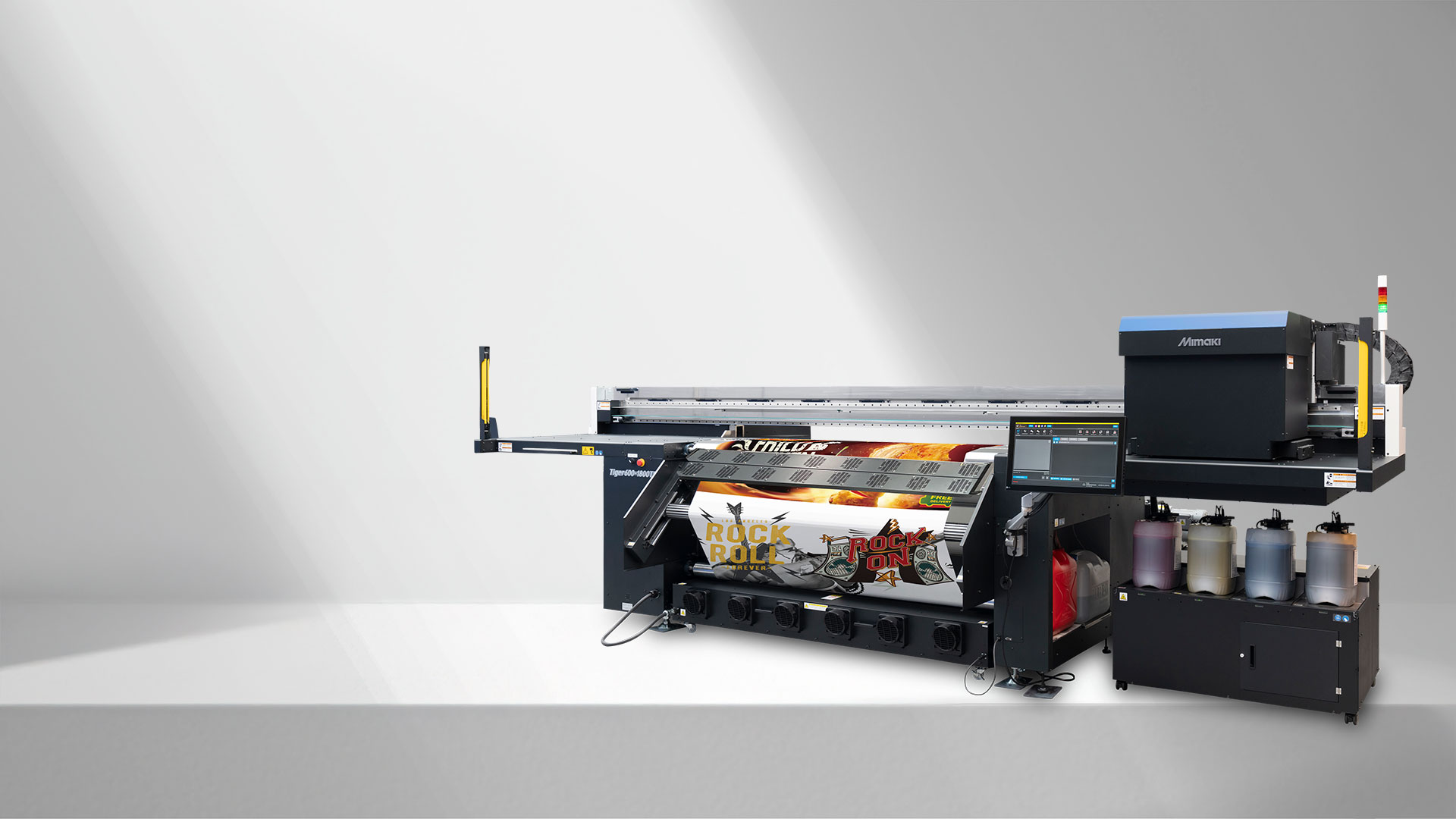

INDUSTRIAL-SCALE PRINTING WITH WATER-BASED PIGMENT INK
Built for continuous operation, the Tiger600-1800TS for Poster Printing achieves reliable production speeds of up to 220m²/h while maintaining remarkable stability.

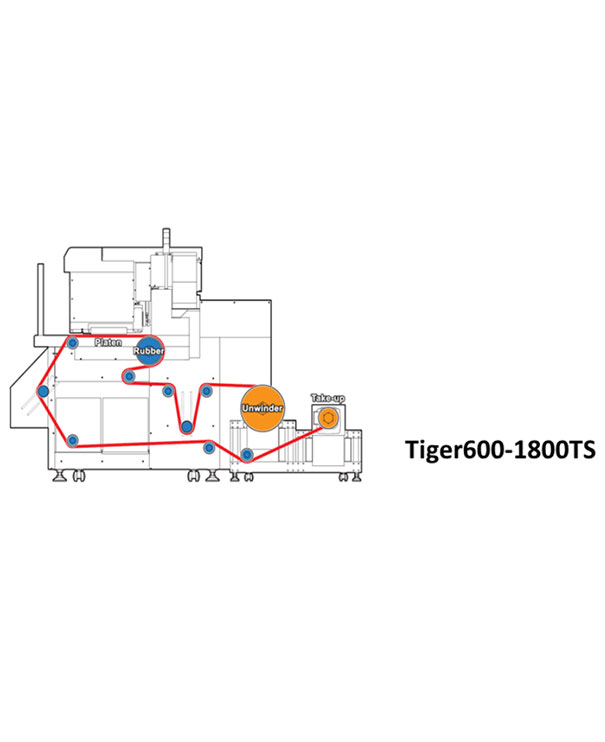

A smart, space-saving construction with one-side feed and take-up system ensures smooth workflow and simple media handling.
Mimaki’s AP50 ink introduces a new generation of eco-conscious pigment technology designed for water-based coated media.
It produces rich, natural colours and is ideal for indoor and short-term outdoor usage — ideal for campaign posters, photo graphics, and commercial displays like Abri/Mupi.

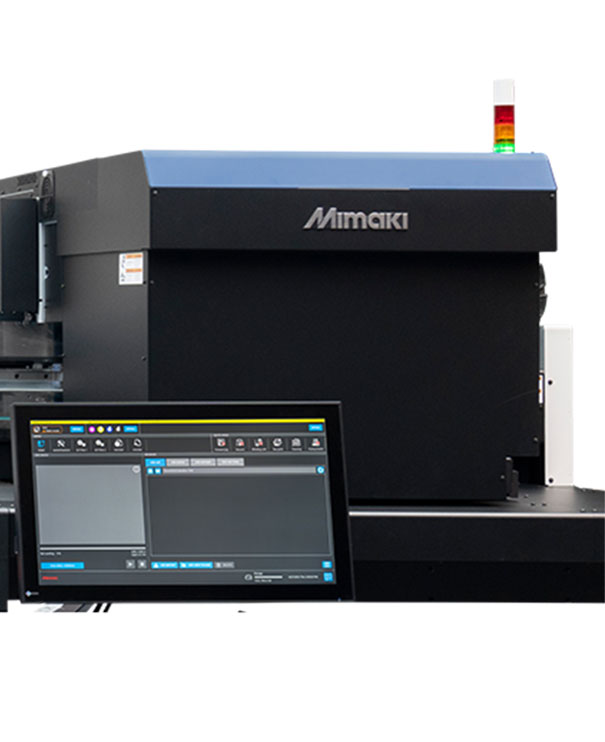

Precision printhead control and Mimaki’s core imaging technologies deliver crisp text, uniform solids, and smooth tonal gradations comparable to offset printing — but with the speed and versatility of digital production.
Water-based pigment ink enables a clean and odour-free printing process while supporting environmentally responsible production.
Compared to traditional analogue and offset printing methods, the AP50 workflow eliminates plates and make-ready stages, reducing material waste and the need for chemical cleaning agents.
Because these prints are recyclable and paper-based, they fit seamlessly into existing paper recovery and recycling streams.
The result is a safer, cleaner and more sustainable production environment — perfectly aligned with the goals of modern, eco-conscious print businesses.
The Tiger600-1800TS for Poster Printing enables you to print a wide range of applications ranging from high-quality photo paper prints, backlit and frontlit posters (ABRI bus shelter posters and display graphics), blueback and billboard paper, photo enlargements, as well as sustainable indoor & short-term outdoor advertising.

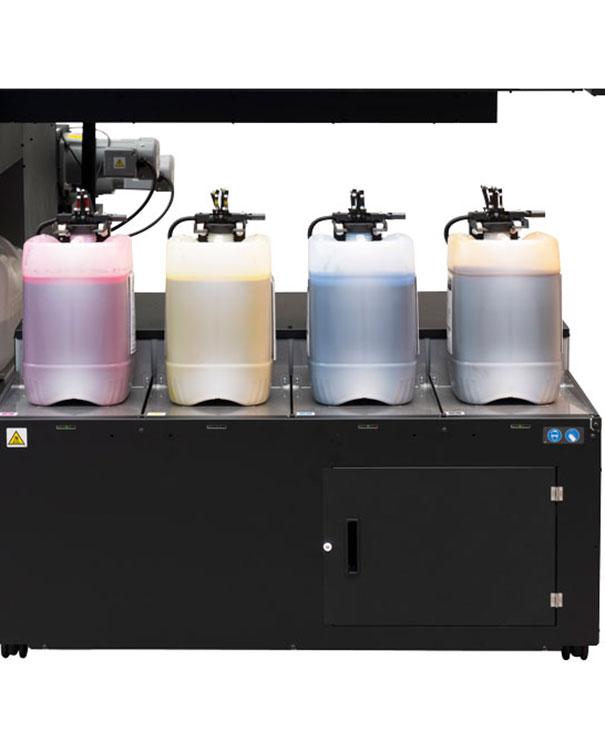

Unleash your creativity with our new AP50 ink, a powerful fusion of exceptional performance and eco-friendliness. Available in 10kg tanks, this high-performance ink ensures uninterrupted production and maximum efficiency. Experience stunning, vibrant prints with the 4-colour ink set.
Choose eco-friendly practices confidently with AP50. It is GreenGuard Gold® approved, meeting strict environmental standards for sustainable production.

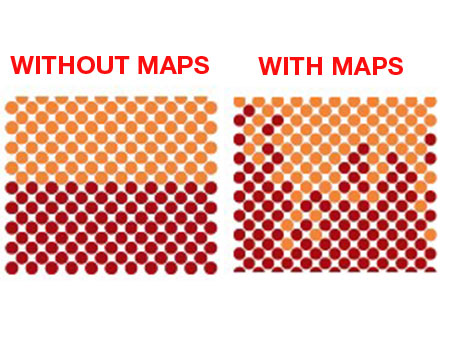

Eliminates visible banding by applying advanced overlapping pass patterns that create smooth gradations and consistent colour density, even at high speed.

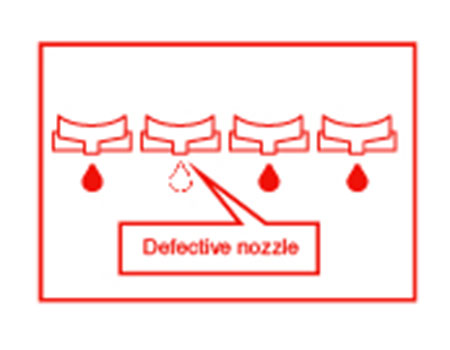

If nozzles remain non-functional after cleaning, the system substitutes them with operational ones, allowing production to continue without visible defects.

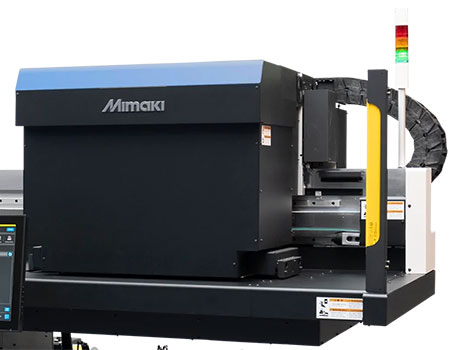

Allows printing to continue even if a printhead section is disabled, ensuring uninterrupted production and maximum uptime.

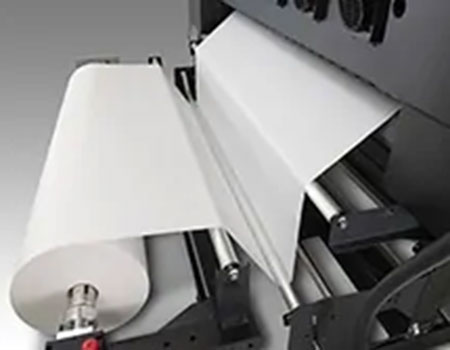

The Mini Jumbo Unit on the Tiger600-1800TS for Poster Printing supports media rolls up to 300kg and max. 60cm in diameter, enabling continuous high-volume production without roll changes while at the same time reducing paper costs.
The Tiger600-1800TS for Poster Printing brings Mimaki’s renowned industrial-scale printing expertise to the water-based pigment segment — offering offset-grade quality, digital agility, and outstanding sustainability for paper-based media.
Fast, flexible, and future-ready, it’s the ideal solution for high-speed, eco-conscious poster and photo printing, powered by Mimaki’s proven technology platform.
With over 50 years of experience, Mimaki leads innovation in inkjet technology, delivering high-performance printers, brilliant colour, exceptional productivity, and eco-friendly solutions. Backed by a large network of trained partners, a robust warranty, and dedicated service, we support your growth and provide peace of mind.
During a 1-to-1 consultation, we’ll demonstrate our technology, show its full potential, and take the time to address your specific questions.
Together, we’ll create the solution that perfectly fits your needs, supporting you every step of the way.
| Printer | Tiger600-1800TS for Poster Printing |
|---|---|
| Print head | On-demand piezo printhead (8 head staggered in 2 lines) |
| Compatible ink set | Water-based Pigment Ink AP50 |
| Ink capacity | 10kg ink tank supply |
| Ink colour | C, M, Y, K |
| Max. printing resolution | 600x1200dpi |
| Compatible media | Mini-jumbo roll unit 3-inch Air chuck shaft |
| Roll diameter | Φ600mm or less |
| Roll weight | Max. 300kg |
| Max. printing width | 1,850mm |
| Min. printing width | 210mm |
| Max. media width | 1,900mm |
| Max. media thickness | Max. 1.0mm |
| Paper core diameter | 3-inch |
| Drying unit | Maximum temperature: 70℃ |
| Operation | Special software: Touch panel type with MPC (Mimaki Print Controller) Built-in PC |
| Interface | Ethernet 10GBASE-T / USB2.0 |
| RIP | RasterLink 7 |
| Power supply | Printer: 3φ 380~415 V ± 5% 50/60Hz ± 1% 25A |
| Conformity standards | ETL compliant with IEC62368-1, CE marking (EMC Directive, Low Voltage Directive, Machinery Directive), CB certification / RoHS / REACH |
| Compressor | 0.6～0.8 MPa ＠Dry Air |
| Dimensions (W x D x H) | Main Unit: 5,350 x 3,300 x 1,920mm |
| Weight | Main Unit: 1,620kg |
Combine with Mimaki’s own developed software Rasterlink 7
Mimaki Cloud Technology PICT is a cloud-based printer status monitoring tool, allowing you to easily monitor your printer from your a PC or mobile device remotely.
Mimaki’s newly developed water-based pigment ink AP50 creates vibrant prints for posters on BlueBack paper and Citylight applications. Its high-density formula and eco-friendly certifications appeal to businesses pursuing quality and sustainable paper printing.
