Industrial desktop format
flatbed UV-LED printer
Built for industrial production

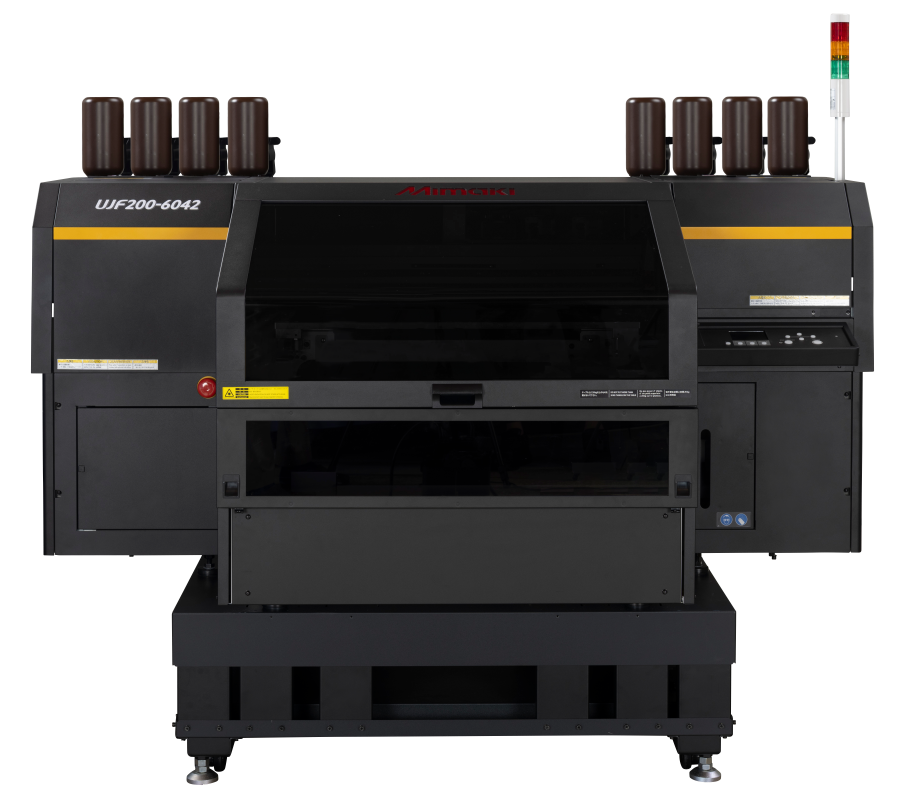

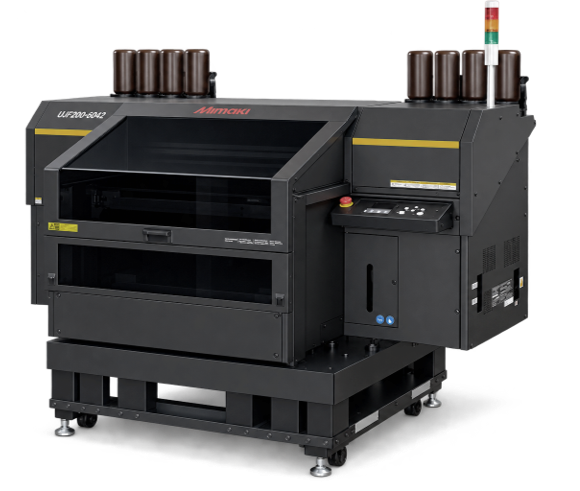

UJF200 Series
Industrial desktop format flatbed UV-LED Printer
The UJF200 Series combines outstanding image quality up to 1,800 dpi, high productivity and advanced automation capabilities in a compact flatbed UV-LED printer. Designed for businesses looking to personalise, decorate and manufacture products efficiently, it opens new opportunities in promotional products, industrial components, customised merchandise, packaging, electronics and premium retail applications.
Available in two models, 300 x 420 mm print area (A3) and 610 x 420 mm print area (A2) and built on the proven UJF platform and enhanced with next-generation productivity features, the UJF200 Series helps businesses produce more, customise more and automate more.
- Higher production: up to 70% faster production speeds
- Expanded application range: print directly onto objects up to 250 mm high
- More colours: Fluorescent Pink & Fluorescent Yellow inks
- Industrial Automation Ready: Scale production with automated workflows and optional camera and belt
Create More Products.
Up to 70% faster production speeds. Complete more jobs every day with significantly higher throughput. The UJF200 Series delivers substantially faster production speeds compared with previous generations, helping businesses increase capacity without compromising print quality.
Produce more products per shift, reduce turnaround times and achieve a faster return on investment.
Create Bigger.

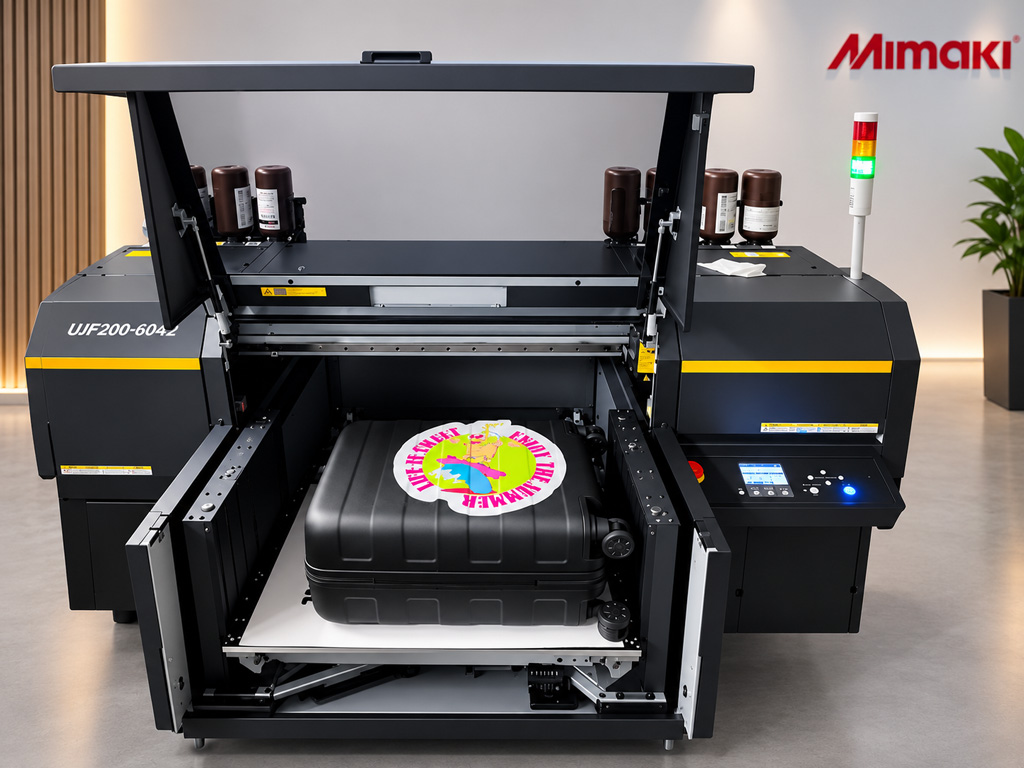

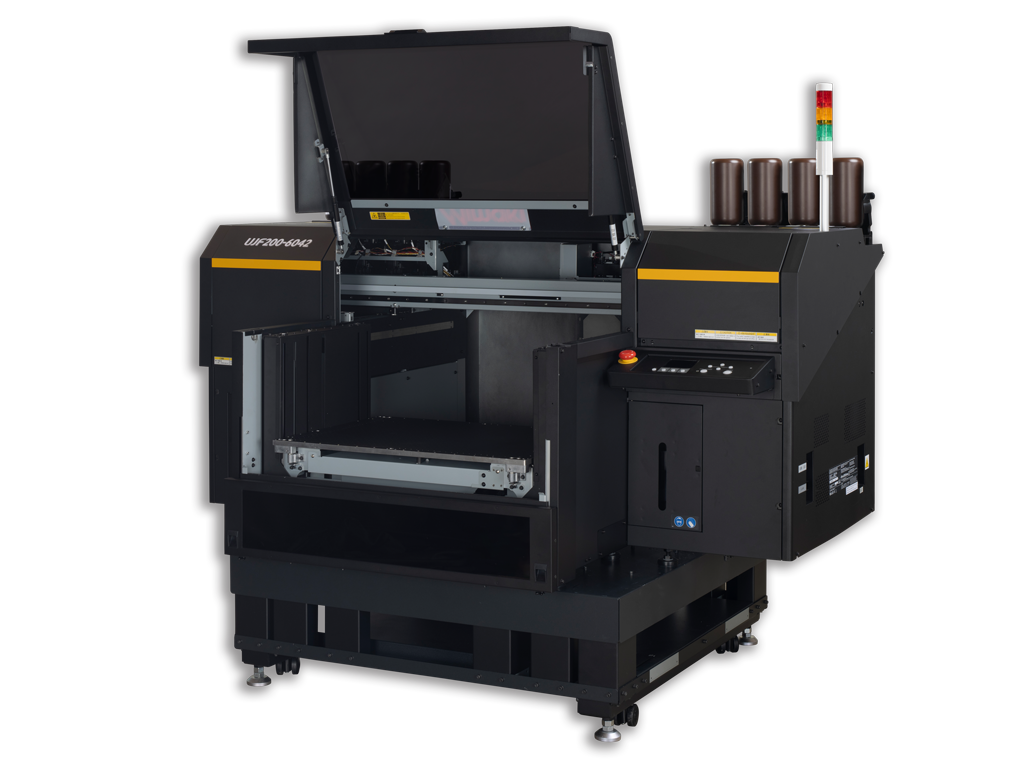

Print directly onto objects up to 250 mm high. Expand your application range with support for media up to 250 mm thick and weighing up to 20 kg. The increased clearance allows direct printing onto a wider variety of products, including carry-on cases, packaging, electronics, accessories, industrial components and premium gift items.
The UJF200 Series eliminates many of the limitations traditionally associated with desktop UV flatbed printers, allowing you to personalise larger and more complex products with ease.
Create More Colour.

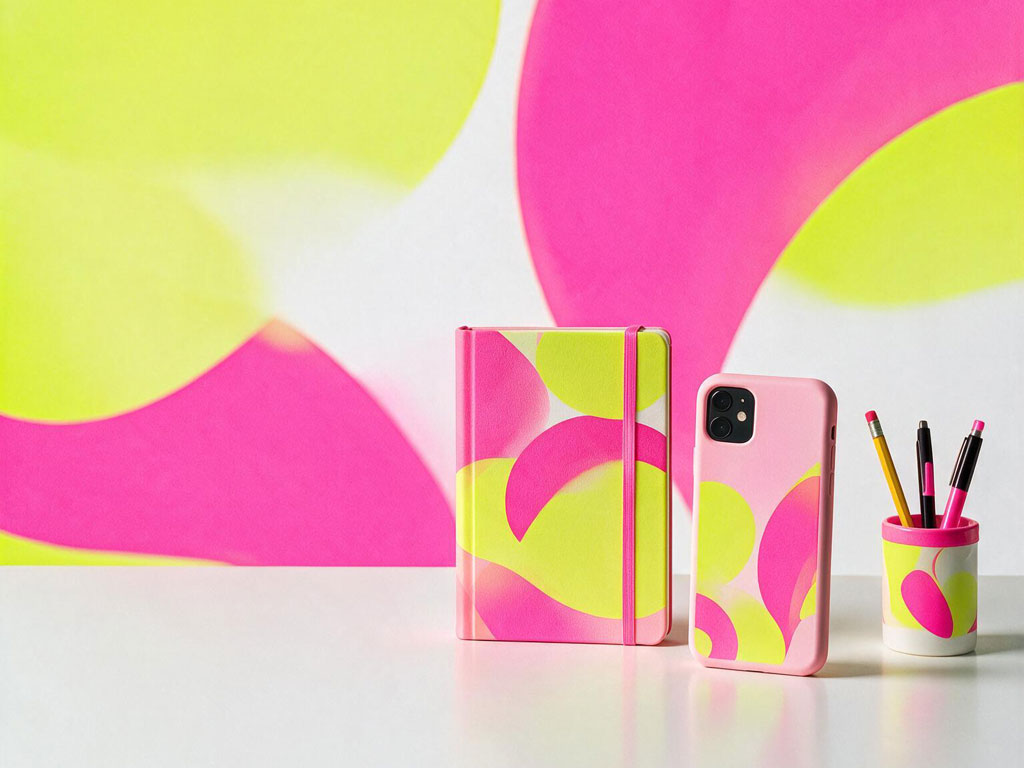

Fluorescent Pink & Fluorescent Yellow inks. Make your colouors POP and stand out with brighter, more vibrant prints. The introduction of Fluorescent Pink and Fluorescent Yellow inks expands the printable colour gamut while enabling premium fluorescent effects that capture attention and create added product value.
Produce eye-catching graphics, striking promotional products and vivid customised applications that help your customers stand out from the competition.
Ready for Industrial Automation.

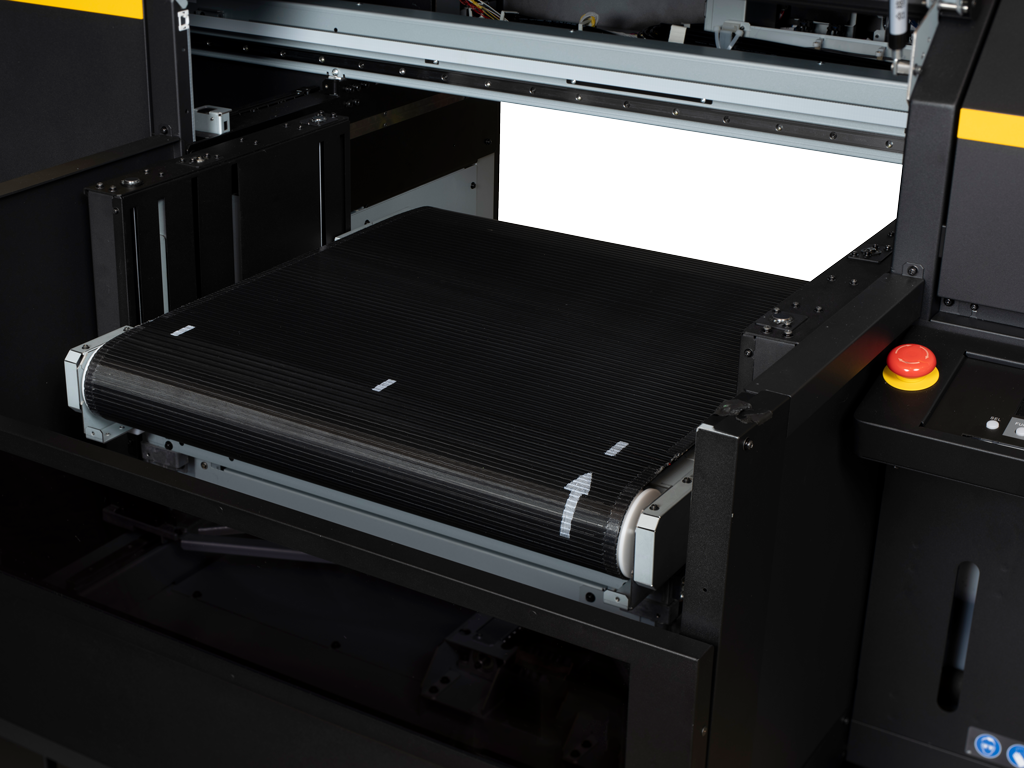

Scale production with automated workflows. The UJF200 Series is designed to support industrial production environments. Optional camera and conveyor belt solutions can support automated workflows that reduce labour costs, minimise operator intervention and improve production consistency.

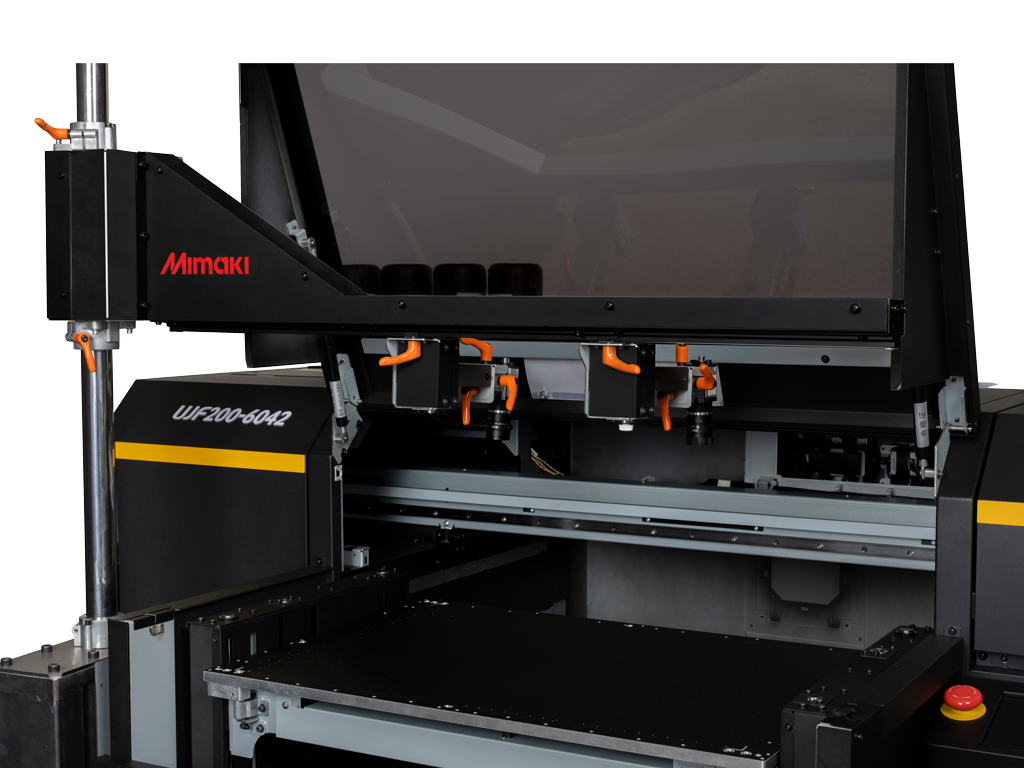

The optional camera system automatically recognises the position, shape and orientation of products on the table and adjusts print placement accordingly. Combined with the optional belt system (*only available for the 6042 model), businesses can create highly efficient production environments capable of unattended operation.
Create With Confidence.
Inspired by the UJF. Engineered for the next step. Drawing on the proven technology and extensive experience behind the UJF platform, Mimaki has developed a new generation of printers designed to take productivity, usability and workflow efficiency to the next level.
The UJF200 Series combines a single-head architecture with a cloth wiper system and automated print-management features, delivering stable operation, simplified maintenance and consistently high-quality results—day after day.
Create more..
Create more products, process more jobs and unlock new revenue opportunities. Whether you’re producing promotional items, industrial components, personalised gifts, retail products or packaging applications, the UJF200 Series is designed to help your business grow.

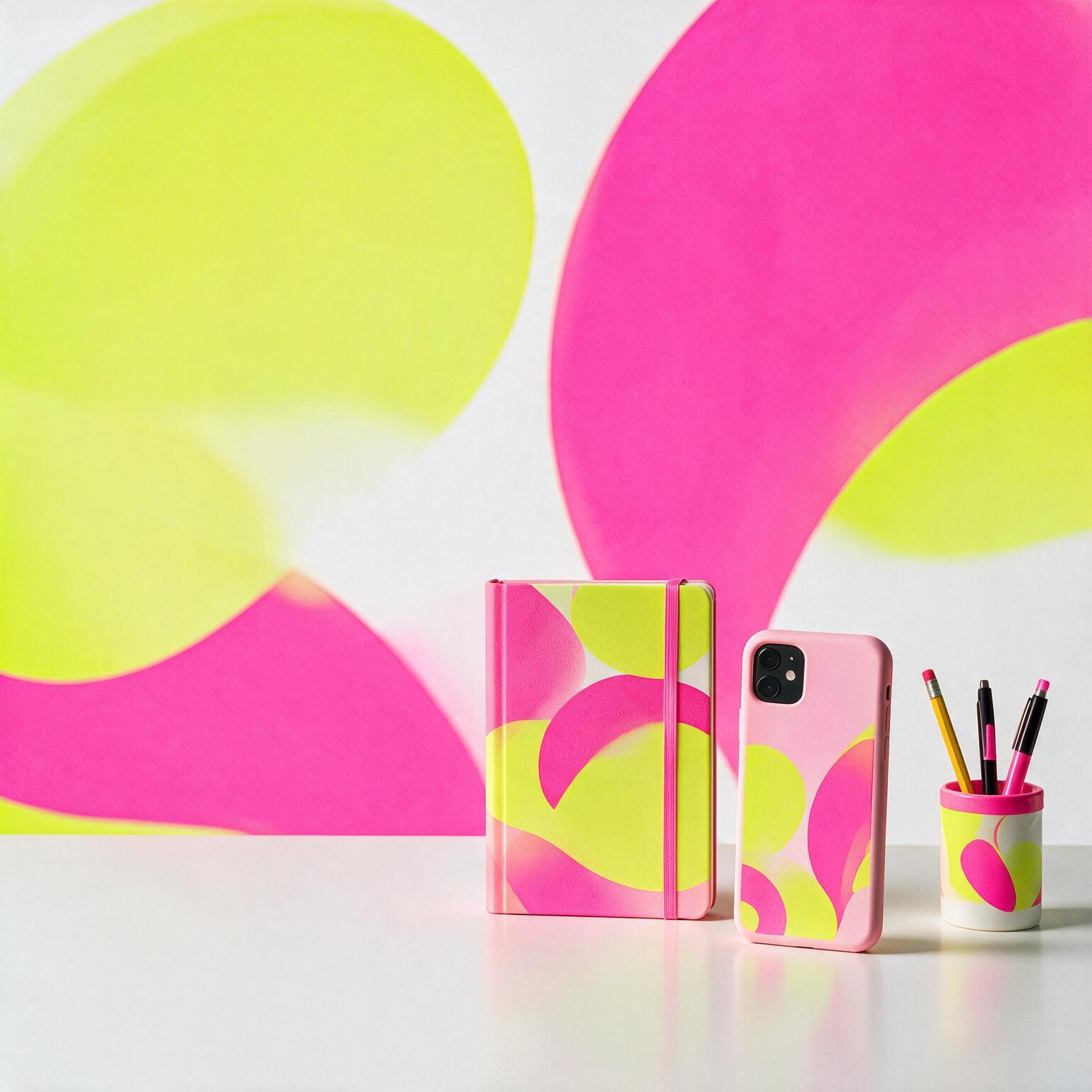

Promotional items & Personalised gifts
Personalise gifts and merchandise with photo-quality prints

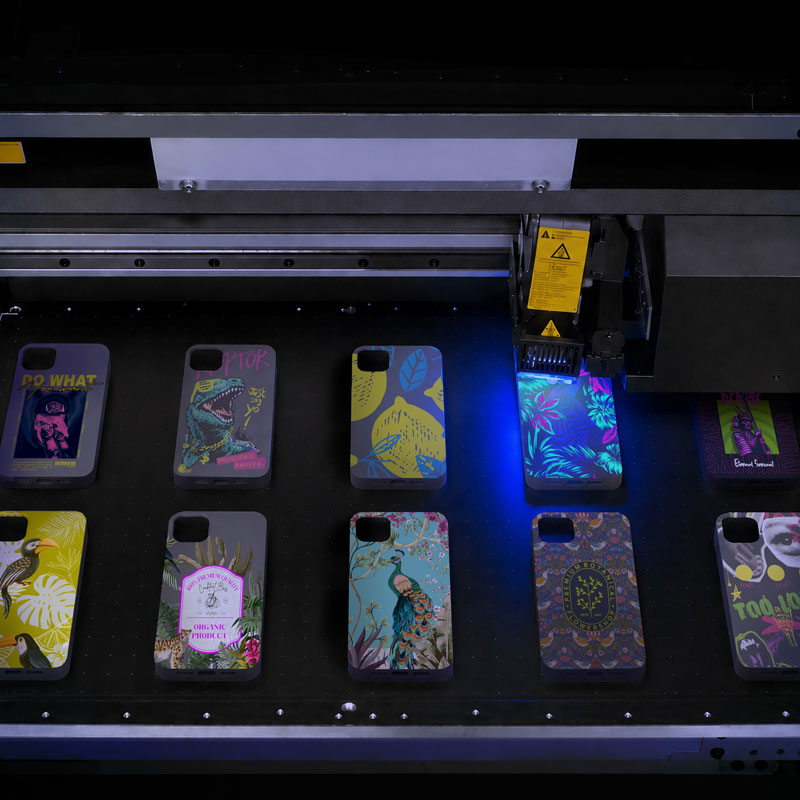

Electronics & Cases
Durable prints on phone cases and electronics accessories
Packaging
Vivid coloors and crisp detail for premium branding
Industrial Components
Weather-resistant prints on industrial parts, panels and equipment.

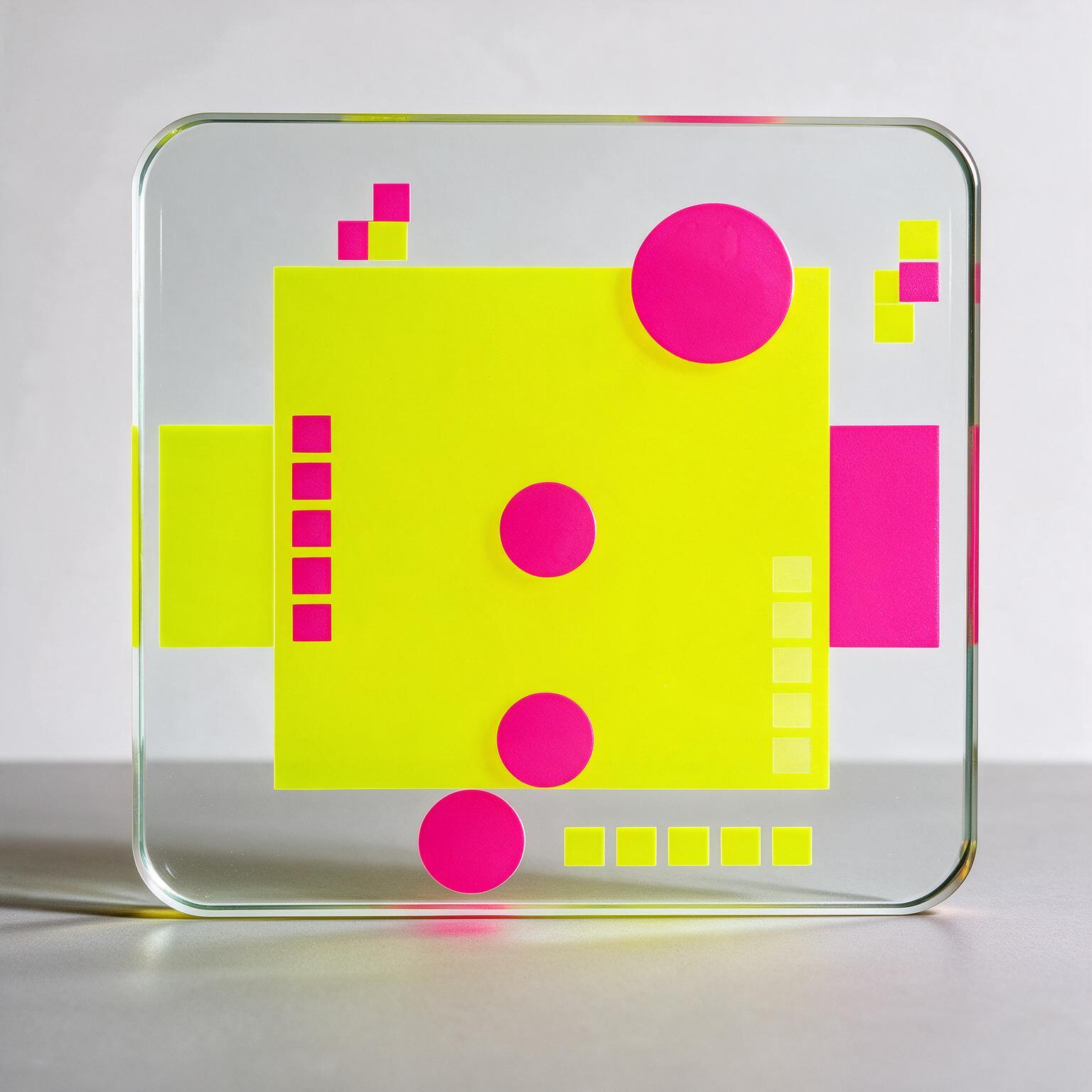

Signage and awards
High-quality results on acrylic, glass, and metal
Art & Decor
Transform artistic visions into reality on any decorative substrate
Complete Feature Set
Everything you need for industrial UV flatbed printing in one comprehensive package.
UJF200 Series Printer
Affordable entry into professional UV-LED printing, backed by Mimaki’s proven reliability and global service network.
Powerful RIP with Rasterlink8
Supports variable data printing, PANTONE® matching, step & repeat, ID-Cut print-and-cut integration, ink saving, and multi-printer control.
ELH-100/ELS-120 UV Ink
The UJF200 Series supports Mimaki’s latest generation UV inks. ELH-100 and ELS-120 inks are SVHC-free, CMR-free and TPO-free.
Mimaki Trusted Warranty
Factory-backed warranty and an authorised, trained service partner network across EMEA — so you can scale with confidence.
Create Exceptional Print Quality
Sharp details, smooth gradations and vibrant colours

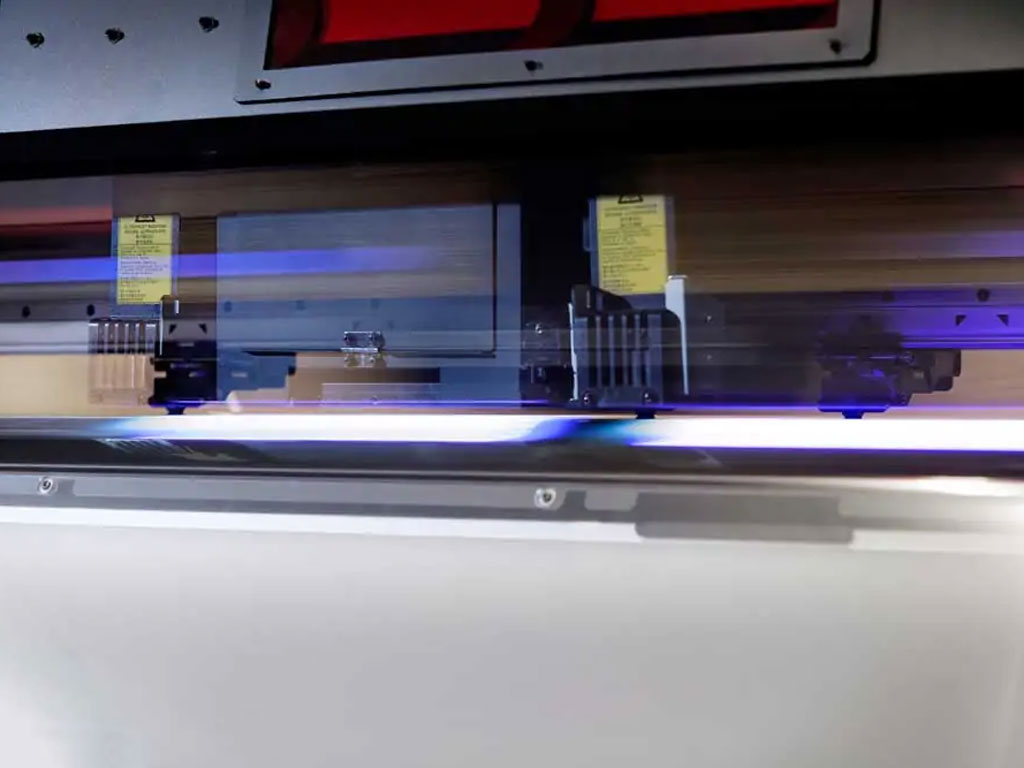

The UJF200 Series is engineered to deliver exceptional image quality with resolutions up to 1,800 dpi. A high-precision printhead combined with Mimaki’s advanced image technologies produces sharp text, fine details, smooth gradients and dense, vibrant colours.
Fluorescent colour printing
Creates vivid applications with enhanced visual impact.
Clear ink effects
Add gloss, texture and premium finishing effects to printed products.
2.5D printing
Create tactile, raised textures that can be seen and felt, giving products greater perceived value.
MAPS (Mimaki Advanced Pass System)
Reduces banding and unevenness for consistently smooth image quality.
Variable dot control technology
Uses multiple droplet sizes to optimise image sharpness, gradation and colour density.
High quality UV ink solutions
The UJF200 Series supports Mimaki’s latest generation UV inks. The ELH-100 and ELS-120 inks are SVHC-free, CMR-free and TPO-free, helping create a safer working environment while maintaining excellent print durability, adhesion, image quality and colour performance across a wide range of materials.
ELH-100
TYPE
Hard
BENEFITS
Brilliant colour gamut
Strong adhesion and superior durability
ELS-120
TYPE
Flexible
BENEFITS
Outstanding flexibility, up to 180% stretchable
Great outdoor durability
EFS-150
TYPE
Fluorescent
BENEFITS
Vivid highlights and accents
Indoor signage, POP displays, warning graphics.
PR-200
TYPE
Primer
BENEFITS
Improves adhesion to challenging materials
Challenging materials
CMYK
Produce vibrant, durable prints with premium-quality CMYK inks
Light Colours
Widen your colour range for true photographic-quality prints
Fluorescents
Fluorescent Pink & Yellow for bold, highly visible graphics
White
Create high-opacity white prints or undercoats for dark and transparent materials
Clear
Create eye-catching embossing effects or glossy and matte finishes
Primer
Ensure strong adhesion on metal and glass with printable primer
Powerful Software Included
The UJF200 Series excels when paired with Mimaki’s software suite. Designed for seamless workflow, it gives you the speed, flexibility, and control to create your work exactly the way you envision it.
RasterLink8
Mimaki’s professional RIP software, bundled with the UJF200 Series. Supports variable data printing, PANTONE® matching, step & repeat, ID-Cut print-and-cut integration, multi-printer control, and the ink saving function. Compatible with PDF, PS, EPS, TIFF, BMP, JPEG, and more.
PICT Cloud Service
Mimaki’s Printer Information Cloud Technology (PICT) is a cloud-based printer monitoring tool, downloadable for desktop and mobile. PICT provides real-time operational status across all connected printers, proactive error and print-completion notifications, ink consumption tracking, and cost reporting. Available from the Mimaki website and accessible from any PC or mobile device.
Smart Choices in UV Printing
UJF-MkII e Series
Available in A2 and A3 sizes, it is designed for the entry-level market, perfect for small businesses and startups.
It excels at producing personalised items, custom packaging, and short-run projects with exceptional details.
UJF-7151 plusII e
Built for industrial producers, delivering speed, precision, and durability.
Supports media up to 15,3 mm thick on a 510 x 710 mm table, handling high-volume jobs with ultra-sharp 1,800 dpi output.
JFX200-1213 EX
High-speed flatbed printing for oversized substrates, handling objects up to 1,260 x 1,300 mm and 50mm thick.
Delivers professional, high-quality results for signage, panels, and custom large items.
Grow with confidence
Mimaki Warranty and Service
Start your UV printing business with a factory warranty that keeps you moving—providing reliable protection and expert help so you can focus on results.
- Comprehensive coverage: Factory-backed warranty across EMEA
- Certified support: Trained, authorised service network
- Cost protection: Peace of mind against unexpected expenses
- Growth focus: Keep scaling by adding a cutting plotter for a complete workflow
Why choose Mimaki?
With over 50 years of experience, Mimaki leads innovation in inkjet technology, delivering high-performance printers, brilliant colour, productivity and eco-friendly performance. Backed by a large network of trained partners, strong warranty and dedicated service, we support your growth and peace of mind.
Ready to transform your business?
Discover how the Mimaki UJF200 Series can elevate your printing capabilities and drive business growth. Contact us today for a personalised consultation.
Together, we’ll craft the solution that fits your exact needs, supporting you every step of the way.
| Model | UJF200-6042 | UJF200-3042 | |
|---|---|---|---|
| Print Head | On-Demand Piezo Head 1 | ||
| Print Resolution | Y: 600, 900, up to 1,800 dpi | ||
| Ink type | ELH-100/ELS-120/PR-200/EFS-150 | ||
| Ink supply | 1L bottle , 250ml bottle dispensing system | ||
| Ink colour | M,C,Y,K,Lc,Lm,Fy,Fp,W,Cl,Pr | M,C,Y,K,Lc,Lm,Fy,Fp,W,Cl,Pr | |
| Media | Print Area | X: 610mm (24inch) Y: 420mm (16,5inch) | X: 420mm (16,5inch) Y: 300mm (11,8inch) |
| Load Capacity | Weight : 20 kg or less ( center load ) | ||
| Maximum media tickness | 250mm or less | ||
| Interface | USB 2.0 / Ethernet 1000BASE-T | ||
| Noise | Standby : 55 dB or less (FAST-A, 1 m in all directions) / Continuous operation sound: 70 dB or less | ||
| Power Specifications | Single phase AC100 – 240 V ±10% /5A 50 / 60 Hz ±1Hz | ||
| Power Consumption | Maximum 450W or less, standard 250W, minimum 4.5W or less | ||
| Installation environment | Operating temperature | 20 °C to 30 °C | |
| Relative humidity | 35 to 65 % Rh (non-condensing) | ||
| Accuracy guaranteed temperature | 20 °C to 25 °C | ||
| Temperature gradient | ±10 °C /h or less | ||
| Dust level | Office equivalent | ||
| Maximum operating altitude | 2,000m | ||
| External Dimensions (WxDxH) | W1,680 x D1,166 x H 798 mm | W1,380 x D1,166 x H800mm | |
| Unit Weight | 187kg | 171kg | |
| Applicable standards | VCCI CLASS A / FCC CLASS A / IEC 62368-1 CB Certification CE marking ( EMC Directive, Low Voltage Directive, Machinery Directive ) / RoHS Directive / REACH Energy Star / EAC RCM Mark | ||
Software RIP
Mimaki’s dedicated software RIP, comes in the box. Rasterlink8 is equipped with more useful and advanced functions.
Rasterlink8
Simple Create
An intuitive design tool for creating labels, seals, POP displays, and stickers without DTP experience. Includes single-click clipping, frame extraction, and curved text tools.
Simple Create
Cloud based monitoring tool
Mimaki Cloud Technology PICT is a cloud-based printer status monitoring tool, allowing you to easily monitor your printer from your a PC or mobile device remotely.
PICT
Mimaki Remote Access App
Monitor your UJF200 Series printer remotely from a smartphone or tablet. Receive error and print completion notifications in real time.
Mimaki Remote Access App
ELH-100
LED UV ink
Hard ink for rigid materials. Mimaki’s new ELH ink is completely free from SVHC* and CMR** substances, setting new sustainability standards.
Packaging
Colour
Ink Type
ELS-120
LED UV ink
Flexible ink for rigid materials and a variety of media. Mimaki’s new ELS ink is completely free from SVHC* and CMR** substances, setting new sustainability standards.
Packaging
Colour
Ink Type
EFS-150
Fluorescent UV ink
Ink for vivid highlights and accents
Packaging
Colour
Ink Type
PR-200
LED UV ink
Additional layer for adhesion
Packaging
Colour
Ink type
