Personalise. Customise. Realise.

High quality small flatbed UV inkjet printer series

High quality small flatbed UV inkjet printer series

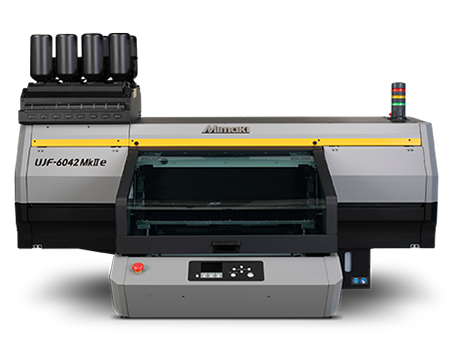

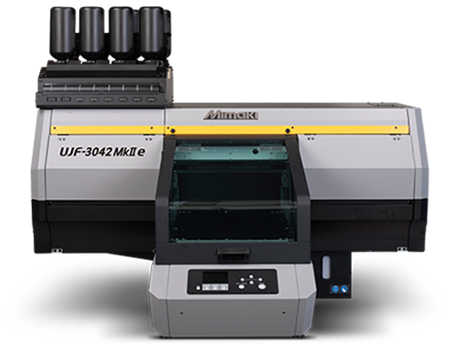

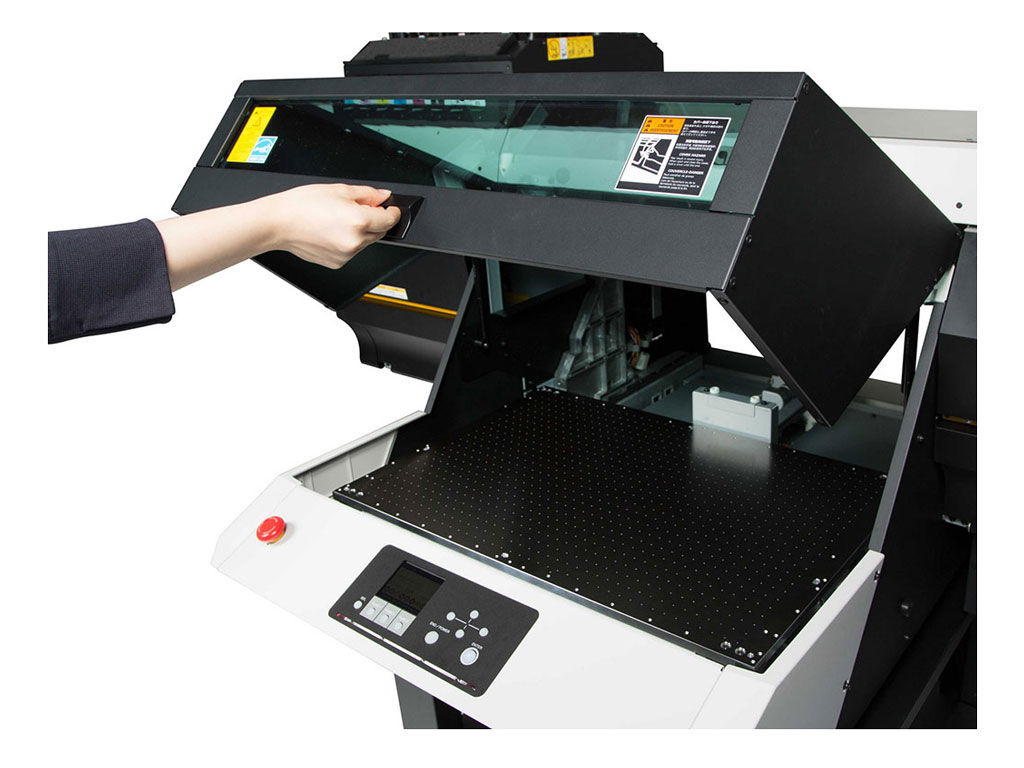

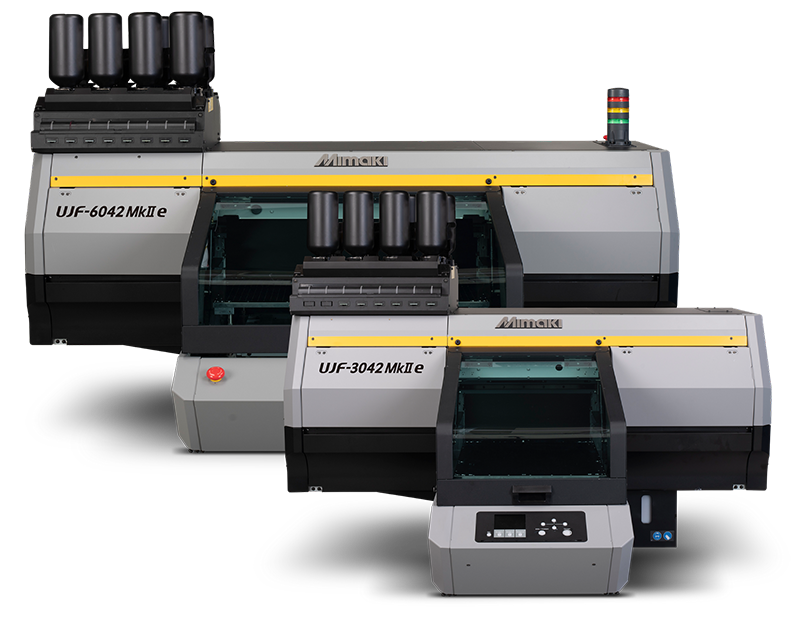

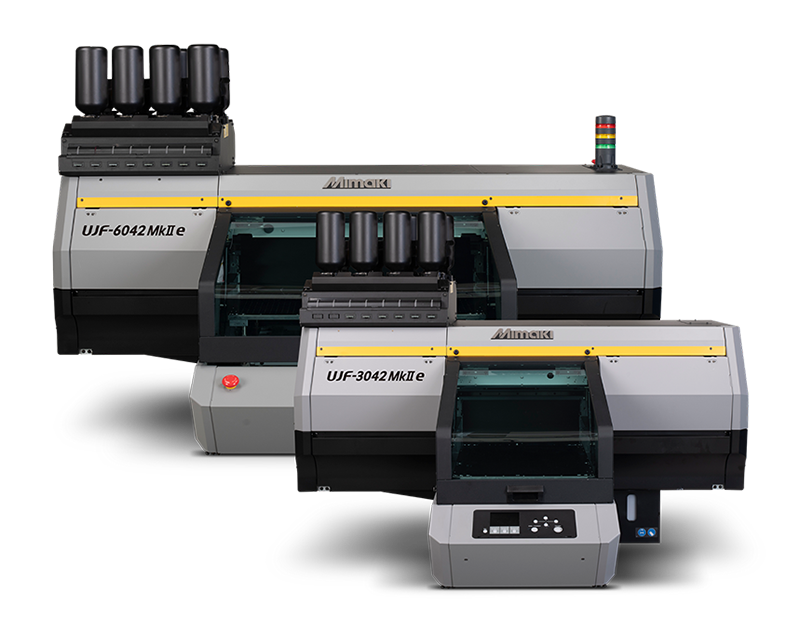

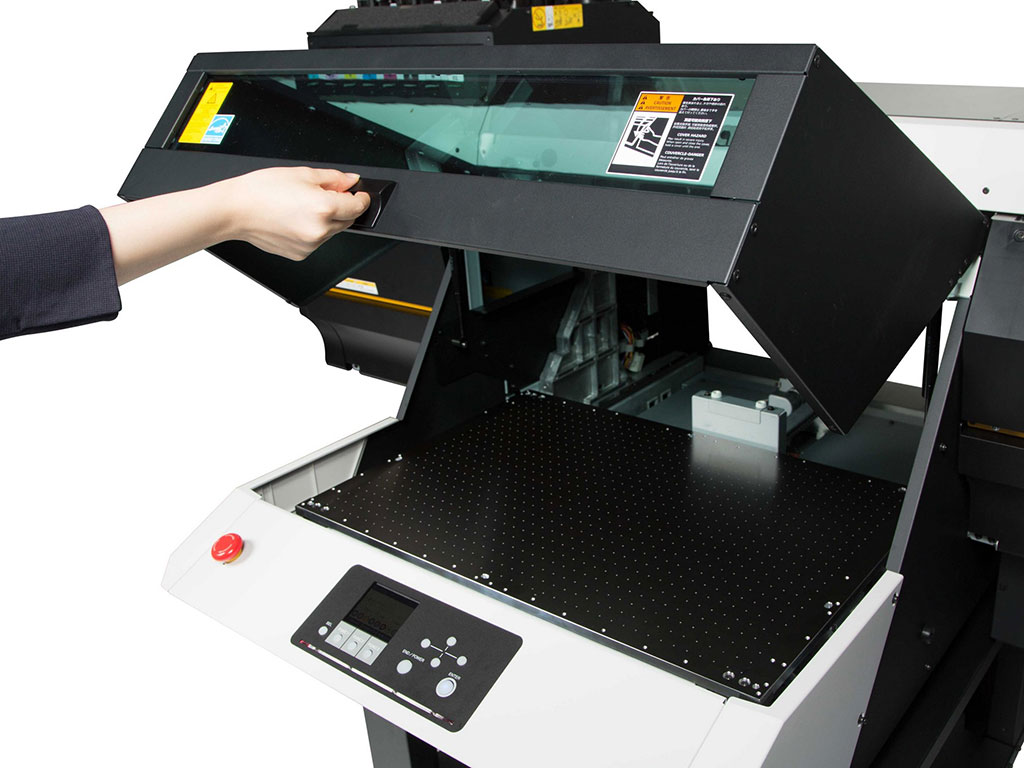

The enhanced UJF-3042 / 6042MkII e series consist of two printers. Customers can choose their preferred print surface size, print head configurations, ink types and a variety of ink configurations. This makes the e series ideal for companies that want to start with personalisation printing or simply expand their existing offerings.
...

Highlighted features

...
  • Highest ROI...
    Highly efficient reliable printers.
    With a low initial investment, a low ink price and the lowest ink consumption in the field, a fast Return on Investment (ROI) is the outcome.
...
  • Highest productivity...
    Printing colour and white without loss of print speed.
    Printing colour with white often means additional passes which reduce overall performance, but not for the MkII e series. Due to the printhead placement, printing in colour with white is done without loss of speed compared to colour only, making it the fastest printer in the marketplace today.
...
  • IoT Automation...
    Easy integration for automated, un-attended production using robotics.
    The high stability and productivity make the MkII e series ideal to be integrated into automated workflows for unattended printing.

    By supporting MDL commands, which comply with Industry 4.0 requirements, the operation can be fully automated and integrated in a production line with other 3rd party peripherals.
...
  • Enhanced functionalities...

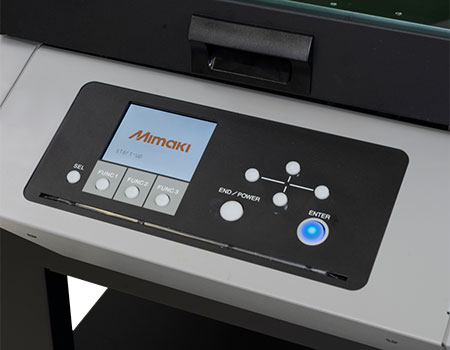

    Easier operation while reducing mistakes.
    With several enhanced functionalities, operating the printer comes naturally.

    Whether it is the enhanced dithering technique for better image quality, the enhanced gap-check sensor for higher detection accuracy, the jig barcode functionality for higher productivity, or the kebab option for printing on cylindrical objects, all are functionalities the operator can rely on.
robot
IOT ready
kebab
Kebab option
barcode
Enhanced functionalities

LED UV ink technology

for endless possibilities

With a variety of LED-UV inks available for the MkII e series, the range of applications seems endless. Choose between hard inks for rigid materials, flexible inks for a variety of media or stretchable inks for soft materials.

MkII e Series inks have been on the market for many years and come with a proven track record of quality and reliability.

drops
greenguard

For even more confidence

our products are certified

GREENGUARD GOLD certified products meet the rigorous standards for low emission of volatile organic compounds (VOCs) and ensures that a product is acceptable for use in environments such as schools and healthcare facilities without polluting the indoor air quality.

This printer includes Mimaki Core Technologies that offer the best print quality, maximum productivity and reduced exposure to risks that can delay production. See below list of core technologies that are included in the UJF-7151plus II.

infinity

Productivity & Convenience

Quality printing

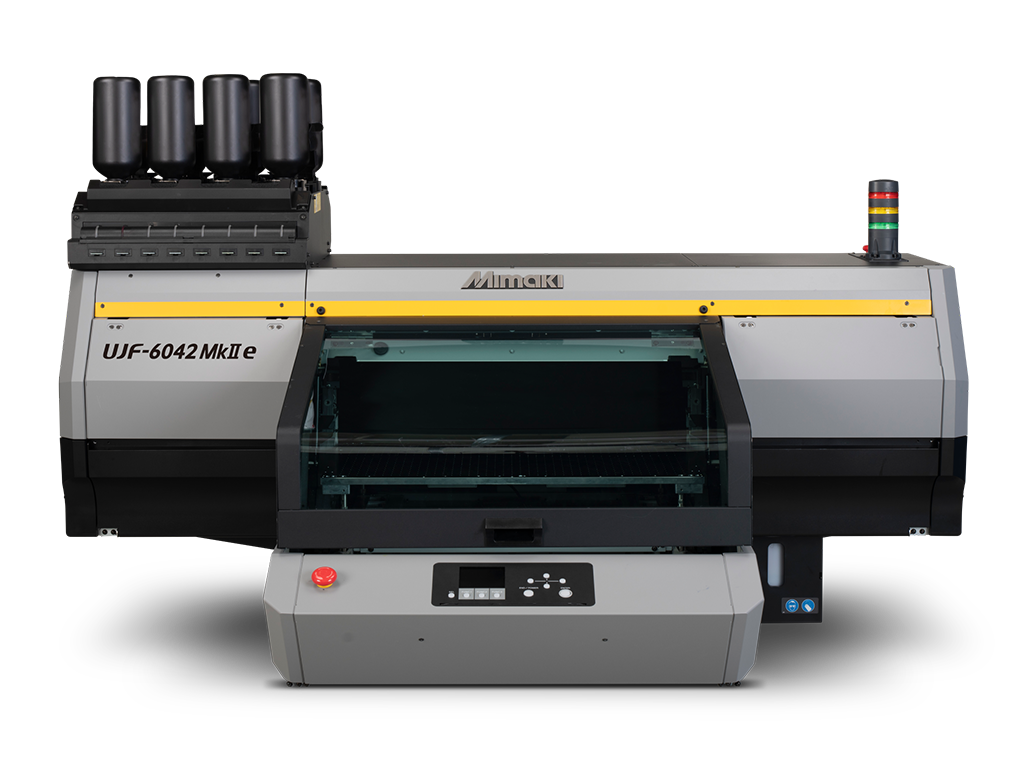

ModelUJF-3042 MkII eUJF-6042 MkII e
Print head3 drop-on-demand piezoelectric print heads (staggered configuration)4 drop-on-demand piezoelectric print heads (staggered configuration)
Ink typeLH-100 / LUS-120 / LUS-150 / PR-200
Ink setC, M, Y, K, W, Cl, PrC, M, Y, K, Lc, Lm, W, Cl, Pr
Ink supply250ml / 1L bottle supply
Print areaX:420mm (16.5inch) / Y:300mm (11.8inch)X:420mm (16.5inch) / Y:610mm (24inch)
Max. media thickness153mm or less
Max. media weightLess than 5kgLess than 8kg
Circulation systemInk circulation in ink tube and ink tank for white ink
InterfaceEthernet / USB2.0
NoiseStandby: 55dB or less (FAST-A, Front & Rear & Left & Right 1m)
Continuous printing: Below 65dB / Discontinuous printing: Less than 70dB
Power supplySingle phase AC100-240V, ±10%, 50/60Hz ±1Hz
Dimensions (WxDxH)1,355mm x 1,290mm x 856mm1,665mm x 1,290mm x 856mm
Installation area1,955mm x 2,090mm or more2,265mm x 2,090mm or more
Weight135kg150kg
RIP softwareRasterLink7
Compatible standardsVCCI CLASS A / FCC CLASS A / IEC62368-1/ CB report
CE Marking (EMC, Low Voltage, Machinery) / RoHS / REACH / Energy Star / EAC/RCM

Software RIP

The primary task of RIP (Raster Image Processor) software is to convert the different formats of the file to be printed into data the printer “understands” as raster data. Includes advanced PDF support, fast processing time, variable data print and jig barcode support.

software
RasterLink 7
Mimaki’s dedicated software RIP, RasterLink 7 comes in the box free of charge.


LH-100

LED UV ink

Hard ink for rigid materials.

packaging
Packaging
250ml and 1 litre bottle
colour
Colour
UJF-3042MkII e
5 colours: CMYK W
6 colours: CMYK W Cl
6 colours: CMYK W Pr
6 colours: CMYK Pr Cl
UJF-6042MKII e
7 colours: CMYK Pr Cl W
7 colours: CMYK Lc Lm W
8 colours: CMYK Lc Lm W Cl
8 colours: CMYK Lc Lm W Pr
8 colours: CMYK Lc Lm Pr Cl
ink-type
Ink Type
Hard ink with high scratch and solvent resistance

LUS-120

LED UV ink

Flexible ink for rigid materials and a variety of media.

packaging
Packaging
250ml and 1 litre bottle
colour
Colour
UJF-3042MkII e
5 colours: CMYK W
6 colours: CMYK W Cl
6 colours: CMYK W Pr
6 colours: CMYK Pr Cl
UJF-6042MKII e
7 colours: CMYK Pr Cl W
7 colours: CMYK Lc Lm W
8 colours: CMYK Lc Lm W Cl
8 colours: CMYK Lc Lm W Pr
8 colours: CMYK Lc Lm Pr Cl
ink-type
Ink Type
Flexible ink with good media compatibility.

LUS-150

LED UV ink

Flexible ink for a variety of media.

packaging
Packaging
250ml* and 1 litre bottle
*only for Primer
colour
Colour
UJF-3042MkII e
5 colours: CMYK W
6 colours: CMYK W Cl
6 colours: CMYK W Pr
6 colours: CMYK Pr Cl
UJF-6042MkII e
7 colours: CMYK Pr Cl W
ink-type
Ink Type
Flexible ink with high scratch resistance
