Less Prep. More Opportunity.
Print bigger, thicker and brighter than ever before.

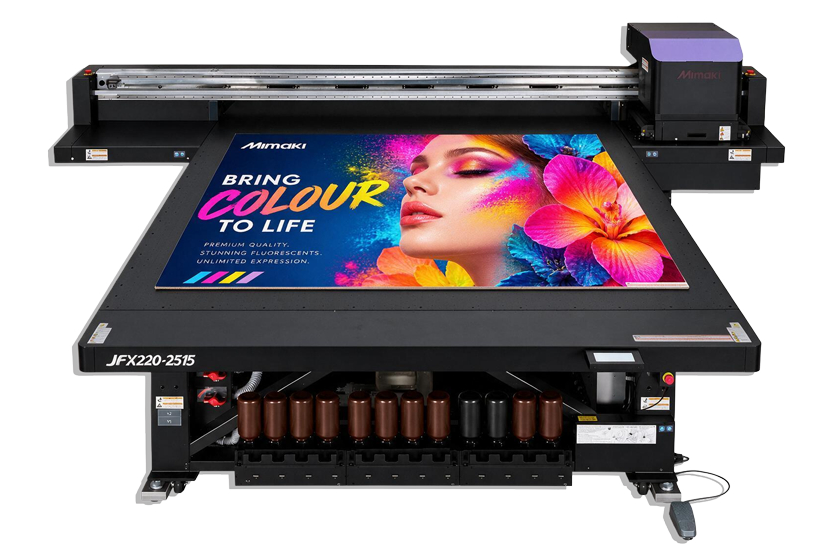

JFX220-2515 UV Flatbed Printer
Load. Position. Print.
The JFX220-2515 is more than a replacement for conventional flatbed printing. It redefines productivity. Combining a generous 2,500×1,500mm print area, simplified media handling and the ability to print on objects up to 101.6mm thick, it offers print providers greater production flexibility.
Designed for sign makers, display producers and industrial print providers, the JFX220-2515 helps reduce setup time, simplify production and expand application possibilities without compromising quality.
- Less Preparation: Automatic vacuum management eliminates masking and reduces operator intervention.
- More Applications: Print on boards, industrial components, interior products, promotional items and objects up to 101.6mm thick.
- More Impact: Expand your offering with new fluorescent pink and yellow inks, texture printing and Braille applications.
- More Productivity: Faster setup with automatic media pins, streamlined workflows and production speeds up to 42m²/h in CMYK setup.
No more masking
Strong vacuum hold, only where it is needed. The JFX220-2515 introduces Mimaki’s innovative ANCHOR Technology, a new intelligent vacuum system that activates suction only where media is present. Unused vacuum holes automatically close, maintaining strong and consistent hold-down power without the need for masking tape or covers.
The result? Less preparation, faster job changes and less operator intervention – especially valuable for short runs and production environments that switch between media sizes throughout the day.
More usable print area
With a printable area of 2,500 x 1,500mm, the JFX220-2515 offers more usable workspace than previous models. The additional table depth increases nesting flexibility, allows more items per layout and provides greater freedom for producing larger panels and display graphics.
The result? The additional space gives operators more freedom to position large panels or nest several smaller items in one layout. This create opportunities to produce more products in fewer runs and improve material efficiency.

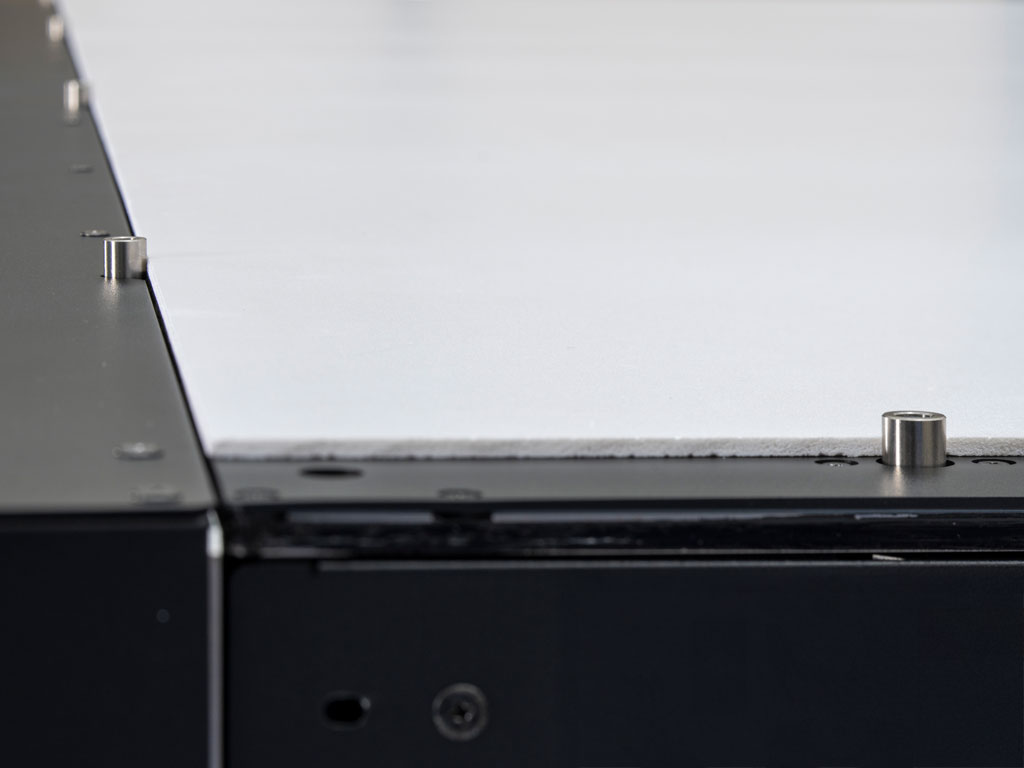

Fast, accurate media positioning
The JFX220-2515 simplifies setup with integrated automatic locate-pins. Activated directly from the touchscreen, the pins rise automatically to guide media placement and retract automatically when printing begins. This enables fast, repeatable positioning without separate alignment tools. Manual positioning pins can also be used for creating different origin points, making it easy for alignment of multiple panel printing.
The result? Greater flexibility across a wide variety of substrates and production workflows.
Brighter graphics impossible to ignore
With fluorescent Pink and Yellow inks that demand attention. Extend the printer beyond conventional process colour. These highly vibrant colours create eye-catching graphics that stand out from a distance and deliver exceptional visual impact for retail, POP and promotional applications, event graphics and high-visibility branding.
The result? Vivid highlights and accents that offer a powerful new way to differentiate output and attract attention where it matters most.
Bring Your Vision to Life
From high-throughput board work to thicker objects and tactile output, the JFX220-2515 gives sign, retail and industrial printers room to expand.
Retail, POP and store fixtures
Create floor stands, in-store displays and promotional fixtures, with Fluorescent Pink and Yellow available for vivid indoor accents.
Product decoration and promotional products
Print directly onto ready-made objects, sports products, display pieces and promotional items that go beyond conventional flat boards.
Instore POP displays
Create floor, wall and in-store signage with Fluorescent Pink and Yellow, enhanced further with illuminated blacklighting.
Textured and accessible signage
Use dedicated build-up modes for 2.5D textures, raised effects and Braille signage with strong visual and tactile value.
Interior decor and furniture components
Use the larger print area and 101.6 mm clearance to decorate doors, panels, furniture components and other interior elements.
Sign & Display
Indoor promotional signage, warning and safety graphics and exhibition displays.
Complete Feature Set
Everything you need for professional UV Flatbed printing in one comprehensive package.

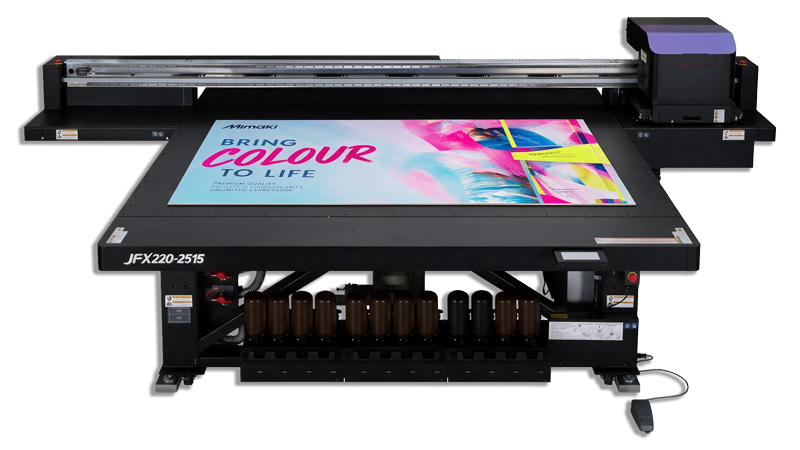

JFX220-2515 UV Flatbed Printer
Industrial large-format flatbed UV-LED printer that allows you to more applications with less preparation.
Powerful RIP with Rasterlink8
New RasterLink8 RIP software that simplifies job setup and colour control.
ELS-120 and ELH-100 Inks
SVHC-free, CMR-free and GREENGUARD GOLD certified inks designed to match different production needs.
Mimaki Trusted Warranty
Factory-backed warranty and an authorised, trained service partner network across EMEA — so you can scale with confidence.
The Strategic Value of UV Flatbed Printing
Print on objects more than 10cm thick
Thanks to the new carriage Z-lift, the JFX220-2515 supports media and objects up 101.6mm (4 inches) thick without requiring additional lift-up accessories. From interior doors and furniture components to skateboards and decorative objects, thicker substrates can now be printed directly and with ease.
Print on uneven surfaces
The all new LD Mode introduces the ability to print on substrates with uneven surfaces and height differences, supporting a head-to-print-area distance of up to 20mm. This extends direct-printing possibilities for stepped or partially raised items including shaped objects, assembled products and applications that would previously have required alternative production methods.
Create new revenue with Emboss & Braille printing
Move into higher-margin specialty production with advanced 2.5D texture creation that allow layered ink structures to produce visual and physical depth. The new Emboss Mode enables build-up of structures up to 4mm high, creating striking dimensional effects. Braille printing capabilities further expand accessible signage opportunities, enabling production of ADA & JIS compliant tactile signage alongside decorative raised printing effects.
High Quality and Versatile UV Inks
Configure the JFX220-2515 around the work you want to produce – from high-productivity CMYK output to premium photographic colour, opaque white, clear effects, adhesion support and fluorescent accents.
4C x 2
CMYK is doubled for high colour-only productivity, reaching up to 51m²/h in high-speed mode and 42m²/h in production mode.
4C + White/Clear/Primer
CMYK with White, Clear and Primer supports dark and transparent media, layered effects and adhesion-sensitive applications.
Expanded colour + FP/FY + White/Clear/Primer
CMYK with Light Cyan, Light Magenta, Fluorescent Pink and Fluorescent Yellow, plus White, Clear and Primer, combines refined gradients with high-impact colour.
ELH-100
TYPE
Hard
BENEFITS
Brilliant colour gamut
Strong adhesion and superior durability
ELS-120
TYPE
Flexible
BENEFITS
Outstanding flexibility, up to 180% stretchable
Great outdoor durability
EFS-150
TYPE
Fluorescent
BENEFITS
Vivid highlights and accents
Indoor signage, POP displays, warning graphics.
PR-200
TYPE
Primer
BENEFITS
Improves adhesion to challenging materials
Glass, metal and acrylic
CMYK
Produce vibrant, durable prints with premium-quality CMYK inks
Light Colours
Widen your colour range for true photographic-quality prints
Fluorescents
Fluorescent Pink & Yellow for bold, highly visible graphics
White
Create high-opacity white prints or undercoats for dark and transparent materials
Clear
Create eye-catching embossing effects or glossy and matte finishes
Primer
Ensure strong adhesion on challenging materials with printable primer
Powerful Software Included
The JFX220-2515 excels when paired with Mimaki’s software suite. Designed for seamless workflow, it gives you the speed, flexibility, and control to create your work exactly the way you envision it.
RasterLink8
RasterLink8 is Mimaki’s latest RIP software platform, designed to simplify print workflows, improve colour accuracy and automate production management. Combining powerful colour management tools with advanced job handling and workflow automation, RasterLink8 helps users achieve consistent, high-quality output while maximising productivity.
Expanded Colour Possibilities
Supports wider colour gamut reproduction and eye-catching fluorescent colours, helping print providers create more vibrant graphics and premium-quality output.
Integrated Colour Management
Colour matching and colour reproduction can be managed directly within RasterLink8, simplifying workflow and helping maintain consistent brand colours across production.
PICT Cloud Service
Mimaki’s Printer Information Cloud Technology (PICT) is a cloud-based printer monitoring tool, downloadable for desktop and mobile. PICT provides real-time operational status across all connected printers, proactive error and print-completion notifications, ink consumption tracking, and cost reporting. Available from the Mimaki website and accessible from any PC or mobile device.
Choose the flatbed printer that best fits your workflow

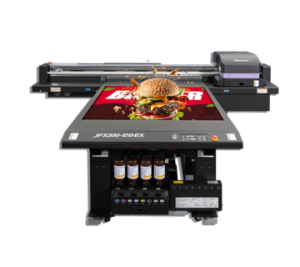

JFX200-1213 EX – Compact, high-speed flatbed
High-performance flatbed UV printer designed for businesses needing compact size without compromising productivity.
- Print width: 1300mm
- Max Speed: 25m²/h
JFX600 Series– Industrial-scale large format flatbed
Utilising 16 industrial build print heads, print speeds of up to 200 m2/h can be achieved.
- Print width: 2500mm
- Max Speed: 200m²/h
JFX200-2513 EX – Large format flatbed
Unparalleled performance and productivity for professional sign and graphics applications.
- Print width: 2500mm
- Max Speed: 35m²/h
Grow with confidence
Mimaki Warranty and Service
Start your DTF printing business with a factory warranty that keeps you moving—providing reliable protection and expert help so you can focus on results.
- Comprehensive coverage: Factory-backed warranty across EMEA
- Certified support: Trained, authorised service network
- Cost protection: Peace of mind against unexpected expenses
- Growth focus: Keep scaling by adding a cutting plotter for a complete workflow
Why choose Mimaki?
With over 50 years of experience, Mimaki leads innovation in inkjet technology, delivering high-performance printers, brilliant colour, productivity and eco-friendly performance. Backed by a large network of trained partners, strong warranty and dedicated service, we support your growth and peace of mind.
Ready to transform your business?
Discover how the Mimaki JFX220-2515 can elevate your printing capabilities and drive business growth. Contact us today for a personalised consultation.
Together, we’ll craft the solution that fits your exact needs, supporting you every step of the way.
| Item | JFX220-2515 | ||
|---|---|---|---|
| Print Head | 4 on-demand piezo heads staggered arrangement | ||
| Print Resolution | Y: 300, 600, 1,200 dpi X: 300, 450, 600, 900, 1,200 dpi | ||
| Ink types | ELH-100, ELS-120, PR-200, EFS-150 | ||
| Ink configuration | CMYK CMYK, CMYK+WClPr, CMYKLcLmFyFp+WClPr | ||
| Ink bottle capacity | 1L / 250cc | ||
| Media | Maximum print area | 2,500 x 1,500mm | |
| Maximum vacuum hold‑down media size | 2,500 x 1,930mm | ||
| Media height | 101.6mm (4 inch) | ||
| Media weight | 50kg/m2 or less | ||
| Vacuum system | Type | Blower vacuum system + standard foot switch | |
| Vacuum area divisions | 25mm pitch suction holes | ||
| UV curing unit | Air-cooled LED-UV curing unit | ||
| Waste ink handling | Bottle type (2600cc), sensor compatible | ||
| Interface | Ethernet1000BASE-T | ||
| Power supply | Single-phase AC200-240±10% 12A or less Single-phase AC200-240±10% 10A or less | ||
| Power consumption | INLET1: 2.88kVA or less, INLET2: 2.33kVA or less | ||
| Operation environment | Operating temperature | 15-30℃ (59~86℉) | |
| Relative humidity | 35~65％RH（non-condensing） | ||
| Temperature for guaranteed accuracy | 20~25℃ (68~77℉) | ||
| Dust level | Equivalent to a standard office environment | ||
| Dimensions (WxDxH) | 4,400 × 2,520 × 1,490mm | ||
| Weight | 920kg | ||
Software RIP
Mimaki’s dedicated software RIP, comes in the box. Rasterlink8 is equipped with more useful and advanced functions.
Rasterlink8
Cloud based monitoring tool
Mimaki Cloud Technology PICT is a cloud-based printer status monitoring tool, allowing you to easily monitor your printer from your a PC or mobile device remotely.
PICT
ELH-100
LED UV ink
Hard ink for rigid materials. Mimaki’s new ELH ink is completely free from SVHC* and CMR** substances, setting new sustainability standards.
Packaging
Colour
Ink Type
ELS-120
LED UV ink
Flexible ink for rigid materials and a variety of media. Mimaki’s new ELS ink is completely free from SVHC* and CMR** substances, setting new sustainability standards.
Packaging
Colour
Ink Type
EFS-150
Fluorescent UV ink
Ink for vivid highlights and accents
Packaging
Colour
Ink Type
PR-200
LED UV ink
Additional layer for adhesion
Packaging
Colour
Ink type
