UJF MkII Series

High performance, state-of-the-art, small format LED UV printers

Mimaki’s latest UJF-3042 MkII, UJF-3042 MkII EX and UJF-6042 MkII flatbed LED UV printers bring increased productivity and ease of use to on-demand, direct
to object printing. Available in A3 or A2 format, these new models build on Mimaki’s peerless heritage to offer spectacular creativity and limitless opportunities
when printing onto almost any material.

Direct print on various objects
Highly scratch resistant inks
Greenguard Gold certified
  • 20% increase in productivity when compared to UJF-3042/6042 Series*
  • Direct printing on substrates up to 153mm thick
  • MBIS bulk ink system with 250ml / 1,000ml bottles
  • Full cover protection prevents dust affecting print quality
  • Choice of rigid or flexible inks, with up to 9 colours including white,
    clear and primer
  • Exceptional print quality as a result of using Mimaki technologies including
    MAPS, MFD and variable dot
  • Uninterrupted printing through the use of MCT, NCU and NRS technologies

Create…

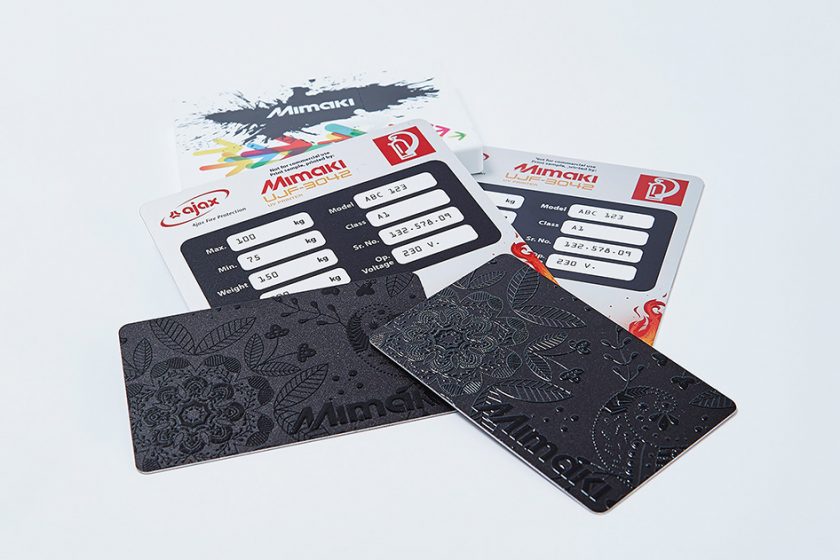

Promotional items, Pens, Key rings, Small format signs & Point of sale, Phone and Electronics covers, Stationery, Bottles, USB sticks, Custom components, Boxes & packaging, Control panels and much more…

Specifications of the UJF MkII Series

ItemUJF-3042 MkIIUJF-3042 MkII EXUJF-6042 MkII
HeadOn-demand Piezo head
Number of print heads344
InkType / colourLH-100 (C, M, Y, K, W, Cl)
LUS-120 (C, M, Y, K, W, Cl)
LUS-150 (C, M, Y, K, W) *1
PR-200 (Primer)
LH-100 (C, M, Y, K, Lc, Lm, W, Cl)
LUS-120 (C, M, Y, K, Lc, Lm, W, Cl)
LUS-150 (C, M, Y, K, W) *1
PR-200 (Primer)
Capacity250 ml / 1,000 ml
Ink circulationWhite ink circulation by MCT (Mimaki Circulation Technology)
ResolutionY-dpi600, 1,200 *2
X-dpi600, 900, 1,200
Media jam / obstacle sensorLaser beam
UV unitAir-cooling LED-UV x1
Nozzle Check Unit (NCU)Equipped
Mist absorption fanEquipped
TableMaximum print size300mm x 420mm610mm x 420mm
Max media height153mm
Max media weight5kg *38kg *3
Flatness accuracy0.5mm0.3mm
VacuumEquipped
Media setOrigin right
MovementTable
CoverFull table cover
Distance accuracyAbsolute± 0.3mm or ± 0.3% of the distance, whichever is larger
Reproducibility± 0.2mm or ± 0.1%, whichever is larger
NoiseStandby: Below 55dB (FAST-A, measured 1m away from the source)
Continuous operation: Below 65dB / Discontinuous operation: Below 70dB
StandardsVCCI-Class A, FCC ClassA, ETL UL 60950-1, CE Marking (EMC Directive, Machine instruction, RoHS Directive, Low Voltage Directive), CB Report,
RoHS compliance, REACH, Energy Star, IEC60825-1
Power specificationSingle-phase AC100-240V, ±10%, 50/60Hz ±1Hz
Power consumptionLess than 1000W
EnvironmentOperational temperature20 ~ 30°C
Relative humidity35 ~ 65%Rh (Non condensing)
Accuracy guaranteed temperature20 ~ 25°C
Temperature gradientWithin ± 10°C /h
DustEquivalent to office level
InterfaceUSB2.0 / Ethernet 1000BASE-T
Dimensions (W x D x H)1,355 x 1,290 x 856 mm1,665 x 1,290 x 856 mm
Weight135kg150kg




Supplies

ItemColourRemarks
LH-100Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, White, Clear250 ml bottle & 1,000 ml bottle
LUS-120Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, White, Clear250 ml bottle & 1,000 ml bottle
LUS-150Cyan, Magenta, Yellow, Black, White, Clear1,000 ml bottle
PR-200Primer250 ml bottle & 1,000 ml bottle
Flushing liquid 071,000 ml bottle













UJF MkII Series inks: LH-100, LUS-120, LUS-150 & LUS-200 are GREENGUARD Gold certified.



Features of the UJF MkII Series

Mimaki Advanced Pass System (MAPS)Banding reduction

MAPS is Mimaki’s unique anti-banding feature. Swath boundaries are overprinted and boundaries prone to banding are printed with fewer ink droplets.




Mimaki LD Mode

The LD Mode allows printing on an uneven surface with up to 4.5 mm difference in media thickness, without a noticeable drop off in print quality.



MFD-Mimaki Fine Diffusion

mfdi
Dithering is an image processing technique, which transforms image data for inkjet printing. Pattern and error-diffusion dithering may, however, generate particular image noise resulting in uneven colour printing or tone jumps, even on a high-performance printing unit. New RasterLink 6 software*, incorporates patented* image-processing MFD, which reduces noise due to dithering through hybrid processing of pattern- and error-diffusion dithering, thereby enhancing print quality.

* MFD is available for Version 4.0 and higher
* Patent number: 5230816




Maintain high productivity levels

In the event of a nozzle malfunction not being repairable by the use of the maintenance function, printing can continue by the use of another nozzle, without any loss of productivity or a reduction in image quality.



Continuous Uninterrupted Printing Features
Mimaki Circulation Technology
Mimaki Circulation Technology (MCT) for white ink circulates the ink at regular intervals to prevent pigment sedimentation occurring. This results in printing becoming more stable, requires fewer cleans and delivers a more cost effective use of ink.


Three types of LED UV ink

LH-100 hard UV ink excels in scratch and chemical resistance as well as colour reproduction.
LUS-120 flexible ink has a wide colour gamut, good weather resistance and can be folded and stretched up to 170%.

Both ink sets include CMYK LC, LM, White, Clear & Primer

LUS-150 flexible ink stretches up to 150% and delivers vibrant colour reproduction. Available in CMYK + White inkset, it adheres well to rigid and soft materials.

colors ujf-3042 / 6042 MkII


Simultaneous white ink under and overprint

Print outstandingly colourful, bright images on transparent and coloured substrates with white ink under or overprint.

4-6-colors-only4/6 colours only
Without white ink as a basis for overprinting, the colours are not as vivid as they should be.

4-6-colors-plus-white

4/6 colours + white
With the white ink overlay print, the images are bright and vivid.
< sample prints on transparent acrylics >


Sophisticated RIP software maximizes the performance of the UJF MkII Series

Rasterlink 6
Works with software Illustrator, Photoshop and Coreldraw and files PS, EPS, TIFF, BMP, JPEG etc.











UJF MkII Series inks: LH-100, LUS-120, LUS-150 & LUS-200 are GREENGUARD Gold certified.
