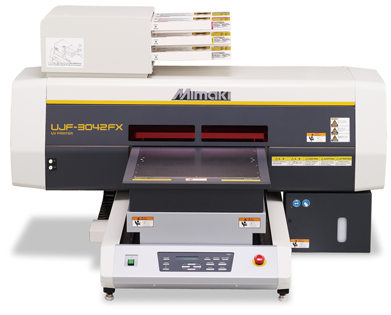

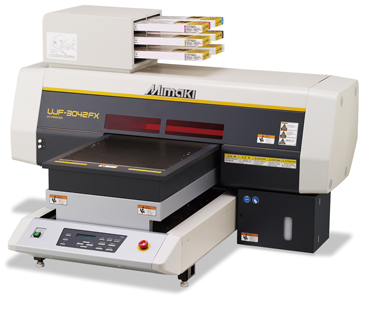

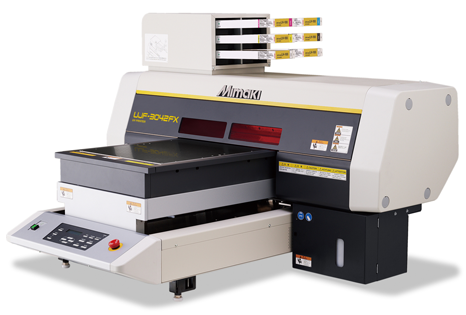

UJF-3042FX

Desktop Size UV LED Flatbed Printer

The UJF-3042FX offers a unique solution for short runs and on-demand printing. The printer enables unrivalled versatility and high quality print reproduction on an almost unbelievable range of materials, products and substrates up to 50mm thickness, including molded items. Now with inkjet primer capability and new UV curable ink, the UJF-3042FX offers unlimited possibilities and applications to the end user.

Direct print on various objects
Inkjet and primer capability
Compact design
  • Outstanding print quality and reliability
  • Space-saving compact desktop design
  • Add extra value with gloss or matt spot varnish and multi-layered printing
  • Print CMYK simultaneously with either two of the following inks: white, clear, primer
  • Direct printing on substrates up to 50 mm thick
  • Eco-friendly UV LED curing technology

Create…

Gifts, novelties, wooden and glass materials and much more…

Specifications of UJF-3042FX

ItemUJF-3042 FX
HeadOn-demand Piezo head
Print Resolution700x 600dpi, 1,440×1,200dpi
UV InkKindLH-100( C/M/Y/K/W/Cl)

LF-200( C/M/Y/K/W)
LF-140(C/M/Y/K/Lc/Lm/W)

Capacity220 ml cartridge / 600 ml ink pack
Inkjet primerPR-100 (220 ml cartridge / 600 ml ink pack)
Max. print sizeWidth:300mm (11.8”) Length: 420mm (16.5”)
Media sizesMax. sizeWidth:364mm (14.3”) Length: 463mm (18.2”)
ThicknessUp to 50 mm (2.0”)
WeightUp to 5 kg (11.0 lbs)
UV TechnologyUV LED unit
InterfaceUSB2.0
Power requirementsAC100V – 240V ± 10 % / below 0.5 kVA
Dimensions (W×D×H)1,200mm × 1,09mm × 770mm
Weight113kg (47.2” × 42.9” × 30.3” / 249.1lbs)

Features of UJF-3042 FX

The UJF-3042FX offers a unique solution for short runs and on-demand printing. The printer enables unrivalled versatility and high quality print reproduction on an almost unbelievable range of materials, products and substrates up to 50mm thickness, including molded items. Now with inkjet primer capability and new UV curable ink, the UJF-3042FX offers unlimited possibilities and applications to the end user.

Versatile: Print directly on almost any material or any application

UJF-3042FX enables short run production with variable print capability, down to one individual printed piece on demand. Almost all substrates of up to 300 x 420mm and 50mm thickness can be easily and immediately enhanced, thus enabling you to offer your clients a truly personalised service and a host of new applications that include gifts and novelties.

3 different types of UV ink available
Choose among the following UV inks that best suit your application:

UJF-3042FX UV inks













*As ink flexibility of LF-200 ink and LF-140 ink vary according to the substrate, please verify your substrate in advance.
*When choosing LF-200 ink, clear ink and primer are not available.
*LF-140 ink set does not include clear ink. You can use a combination with LH-100 clear ink.



User-friendly: Automate primer application functionality

Currently primers are applied offline in a manual application process, but the UJF-3042FX incorporates an automatic primer feature. The new inkjet primer cartridges are simply inserted into the corresponding ink slot of the UJF-3042FX, enabling the primer to specifically target the print image area only.

Automatic primer coating only on selected area without compromising speed
The primer does not require extra printing time as it is simultaneously applied with the process colours during printing. This process streamlines the printer workflows significantly without compromising speed.*

UJF-3042FX Primer Application
















*When printing with primer and white or clear ink production speed is reduced by approximately 50%.


PR- inkjet primer possibilities

UJF-3042FX PR-100


*The above results have been achieved by Mimaki and are not guaranteed. Please test your intended materials beforehand.



Impressive: Add value with glossy finishing and multi-layered printing

Glossy or matte spot varnish with clear ink offers unique eye-catching effects on your prints. Furthermore by printing different layers of ink and/or gloss, your images will not only look more enticing but also will have a raised / embossed quality that will satisfy your customers.

UJF-3042FX Multi-layered










Eco-friendly: UV-LED curing technology

UV LED offers reduced energy consumption, longer diode lifetime and almost no VOC* emissions during printing. In addition, UV LED technology does not generate excessive heat enabling printing on almost every material including heat-sensitive substrates for flexible packaging such as thin films, among others.

*Volatile Organic Compound.



Other features:

  • The new nozzle recovery function enables printers to keep on printing in excellent quality, thus reducing downtime.
  • Printing at resolution of up to 1440 x 1200dpi with variable dots enables a high image quality.
  • All in all, a compact tabletop printer that is just the right size to be placed into any printing environment.
