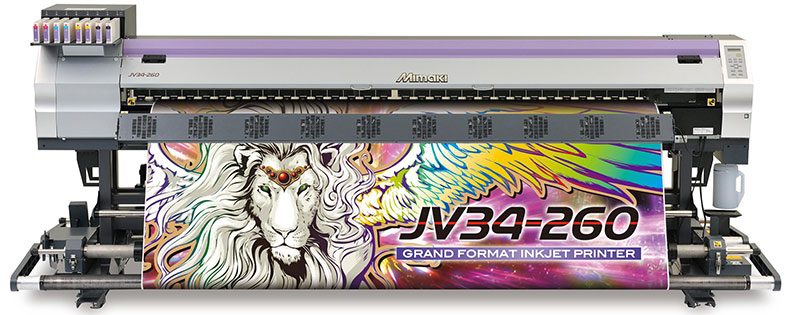

JV34-260

Super Wide Format Inkjet Printer

Designed to extend the scope of outdoor durable printers the Mimaki JV34-260 enables print producers to increase their product range, extend their capabilities and develop new business opportunities with the new machines unprecedented combination of speed and high definition print quality – and all in super wide format up to 2.6 metres wide.

Super wide format
High print speeds
Heavy media feeding unit
  • Super wide format printing up to 2.6 m
  • Printing speed up to 30 m2/h
  • Choice of ink types including outdoor durable low solvent and dye sublimation
  • 4 or 6 colour printing
  • Continuous unattended printing

Create…

Solvent
Banners, backlit signs, pop displays, floor graphics, labels, posters, high quality stickers, vehicle wrap, window signage and more.

Dye sublimation transfer
Soft signage and flags, sportswear, interior design and furnishing, promotional items / giveaways, indoor graphics, and various hard substrates.

Signage
Exhibition signs, POS displays, banners, flags, pennants, etc.

Sportswear
Jackets, shirts, jerseys, shawls, etc.

Interior decorating / furnishing
Curtains, table cloths, wall murals, roll screens, floor graphics, etc.

Giveaways
Bags, umbrellas, lanyards, lighters, etc.

Various hard substrates
Tiles, sports equipment, musical instruments, etc.

Substrates

Solvent ink SS21
Vinyl, banner, paper, canvas, (blueback) paper, PET.

Dye sublimation ink Sb52
Transfer paper.

Sublimation transfer ink SB53
Transfer paper.

Specifications of JV34-260


Print headOn-demand Piezo head (array of 2 staggered print heads)
Maximum print width2,632 mm
Printing resolutions540, 720, 1080, 1440 dpi
Ink typeSolvent ink SS21 (4 / 6 colours: C/M/Y/K/Lc/Lm)
Dye sublimation ink Sb52 (4 colours: BL/M/Y/NK)
Sublimation transfer ink Sb53 (6 colours) BL / M / Y / K / LBL / LM
Ink capacity4-colour mode
440 ml ink cartridge : 2 x per colour (880 ml ink/colour)
MBIS (2 litre ink container) : 2 x per colour (4 litre ink per colour)
6-colour mode
440 ml ink cartridge: 1 x per colour (440 ml ink / colour)
MBIS (2 litre ink container) : 1 x per colour (2 litre ink / colour)
Media Size210 mm ~ 2,642 mm (210 mm ~ 1,620 mm with narrow take-up device)
Roll weight100 kg (25 kg with narrow take-up device)
Roll inside diameter3 inch (2 – 3 inch with narrow take-up device)
Media heaterTriple stage intelligent heater (Pre/Print/After)
Media dryerPost-heating and automatic drying fan
InterfaceUSB 2.0
Power consumption2 x Less than 1,440W
Dimensions (w x d x h)3,650 x 1,302 x 1,424 mm
Weight465 kg




Our Sb53 ink is ECO PASSPORT by OEKO-TEX® certified.




Mimaki’s JV34-260 compatible SS21 mild solvent ink meets the chemical requirements of the Nordic Swan Ecolabel program for printing companies.



Features of JV34-260


High speed printing up to 30 sqm/h

Two newly developed high tech print heads in staggered arrangement achieve a maximum speed of 30 sqm/h. Benefit from a fast return on investment due to increased productivity and a very accessible price.


Unattended continuous printing


Continuous and stable media conveying
Media up to a roll weight of 100 kg is securely controlled. Mimaki’s Automatic Media Feeder (AMF) maintains optimum tension even on long jobs. Smaller media are supported by the standard small take-up device that comes with the printer thus enabling full control of all substrates sizes.

Continuous ink supply
With Mimaki’s Uninterrupted Ink Supply System (UISS), when one ink cartridge runs out, another cartridge of the same colour begins supplying ink. Ink cartridges can be changed during printing. Furthermore, the optional Mimaki Bulk Ink System (MBIS) employs 2 litre ink containers in combination with UISS, enabling long unattended printing without interruption.


Other Advanced Functionalities

  • Variable dot technology produces ink drops in three different sizes, realising smooth, high resolution graphics without grainy appearance.
  • Three stage intelligent heater improves the performance of ink and enables fast drying for high speed printing.
  • Automatic drying fan ensures that media is dried thoroughly even at high speeds so that it can be wound up immediately.
  • Head height adjustment to 2 or 3 mm. For sublimation, adjustment of 3 or 4 mm is available.
  • High performance RIP software is included to help you utilise the various functions of the JV34-260.

Available in solvent and dye sublimation model

Water-based sublimation ink and solvent ink can be used in JV34-260, enabling a widevariation of applications, including signs, flags, banners, sublimation printing for polyester, etc.

Please note that ink type must be chosen at time of installation. Sublimation printing corresponds to printing on transfer paper.





Our Sb53 ink is ECO PASSPORT by OEKO-TEX® certified.




Mimaki’s JV34-260 compatible SS21 mild solvent ink meets the chemical requirements of the Nordic Swan Ecolabel program for printing companies.
