CG FX Series

the Perfect Cutting Tool for Every Job

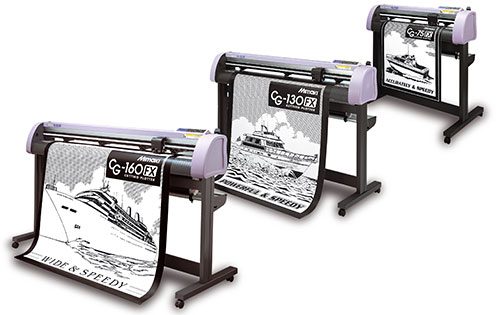

Mimaki’s range of cutting plotters includes models from 75 cm wide desktop models up to 160 cm wide professional production models – providing a practical and cost effective solution for every sign and graphics need.

Professional software package
High speed cutting
Crop mark detection
  • 3 different models available (760 mm, 1300 mm & 1600 mm)
  • Wider roll cutting format for professional use
  • High precision cutting and performance
  • Mark sensor, with media hold function to guarantee accuracy
  • Higher speed cutting up to 100 cm/s
  • Fast and accurate contour cutting
  • Half-cut function holds image in place after cutting for perfect stickers & decals
  • Optional media baskets available
  • Professional & user-friendly software package included as standard

Create…

Clothing, logos, stickers, labels, decals, graphics and signage

Substrates

(Coloured) vinyl, transparent PET, (transfer) paper, flock, rubber.

Specifications of the CG Series


Cutting plotterCG-75FXIICG-130FXIICG-160FXII
Acceptable sheet width9 – 104 cm9 – 158 cm9 – 188 cm
Effective cutting area (1)760 mm x 51 m1300 mm x 51 m1600 mm x 51 m
Max. speed (2)140 cm/s
Max. cutting speed 100 cm/s
Adjustable speed range (3)1 – 10 cm/s : 1 cm step adjustment
10 – 40 cm/s : 5 cm step adjustment
40 – 100 cm/s : 10 cm step adjustment
Repeatability ± 0.2 mm (excluding shrinkage / expansion caused by film temperature)
Guaranteed range of accuracy (4)760 mm x 10 m 1300 mm x 10 m1600 mm x 10 m
Max. pressure 400 g
Acceptable sheet (5) Vinyl up to 0.25 mm thickness, fluorescent type vinyl, reflective sheet
Applicable tools (6) Cutter, water-based ball-point pen, oil-based ball-point pen. Also pouncing tool for CG-SRII and CG-FXII series.
Interface USB, RS-232C
Power consumption AC100V-240V, 130VA or less
Dimensions (WxDxH)1285 x 700 x 1217 mm1825 x 700 x 1217 mm2125 x 700 x 1217 mm
Weight50 kg60 kg69 kg



  1. Max. sheet feeding length differs depending on the software
  2. Max. moving speed at 45o direction with pen up.
  3. The plotter cannot perform cutting (plotting) at the specified maximum speed or maximum acceleration.
  4. May be limited by sheet width.
  5. Depending on the specified film and cutting conditions.
  6. Provided that the blade specific for fluorescent type vinyl or for reflective sheet are used.
  7. The goods on the market are 8 – 9 mm pen. No guarantee on accuracy.

Features of CG FX Series

High-speed continuous crop mark detection


For precise contour cutting of printed images, such as stickers, the optical sensor detects register marks that are printed on the media. By recognizing these marks, the distance to the image is calculated accurately.

By continuously detecting a maximum of 4 register marks nested images in both X and Y axis direction can be cut aligning each image automatically. Detecting one register mark is sufficient when using Mimaki’s FineCut software.




Innovative Mimaki Half-Cut Function

Mimaki’s original Half-Cut function produces a series of half and die-cuts leaving a few connection points that keeps the image in place. When the job is done the sticker/image can be taken out easily or the complete sheet or roll can be sent to the customer. Various media without backing sheet can also be Half-Cut.





Over cut function

The over cut function overlaps the start and end points of the media, thus eliminating cut lines that not completely cut.


User-friendly software included


Mimaki FineCut is a powerful and user-friendly plug-in package for either CorelDraw or Adobe Illustrator. It provides an impressively slick print and cut workflow and also the cutting of shapes and figures with coloured vinyl.
