Maximise your UJF flatbed potential
Add 360-degree printing capability to your UJF Series printers.
Expand your product range to include applications like tumblers, bottles, cylindrical packaging, and more!
Roll out your creativity
Kebab HS & Kebab MkII Series: Cylindrical print options for UJF-MkII e and UJF-7151 plusII UV printers
Broaden your product range with the all new Kebab HS
The all new Kebab HS system allows you to achieve 360-degree printing directly onto cylindrical objects (50mm~100mm in diameter) and tapered shapes (up to 7.5° angle), including bottles, tin cans, glasses, and cups. Compatible with our UJF-MkII e Series and UJF-7151 plusII LED UV printers as an optional accessory, Kebab HS delivers high-speed printing and superior print quality. Elevate your merchandise business today!
Kebab MkII Series
Using rotary rollers, the Kebab MkII Series rotates objects to print on the entire surface of the cylindrical item (10mm~110mm in diameter). Along with easy mounting, the Kebab MkII (UJF-3042 MkII e) can print on objects up to 300mm in length, while the Kebab MkII L (UJF-6042 MkII e and UJF-7151 plusII) can print on objects up to 600mm in length.
Kebab MkII Series
Using rotary rollers, the Kebab MkII Series rotates objects to print on the entire surface of the cylindrical item (10mm~110mm in diameter). Along with easy mounting, the Kebab MkII (UJF-3042 MkII e) can print on objects up to 300mm in length, while the Kebab MkII L (UJF-6042 MkII e and UJF-7151 plusII) can print on objects up to 600mm in length.
Unique features
Enhanced productivity

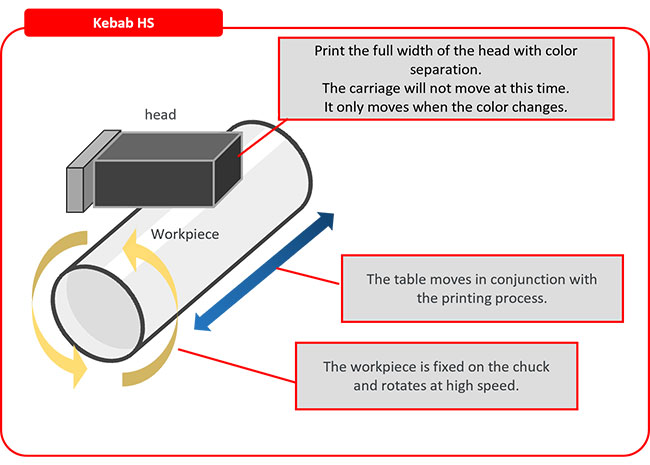

The Kebab HS uses high-speed rotation and vertical movement.
Making it up to 3 times faster than the Kebab MkII Series. As the workpiece is quickly rotated, it prints one colour at a time. At each colour pass, the carriage will stop, utlising the full width of the print head, while the printed surface moves along the table for speed.
Versatile 360° printing
Print onto cylinders up to 100mm in diameter and 300mm high.
As well as tapered shapes with a gradient angle of up to 7.5° using the Kebab HS.
User-friendly software
RasterLink7 simplifies your print job management.
While RasterLinkTools makes it easy to create tapered print designs, ensuring a simple seamless production experience.
Easy setup
Seamless installation
by certified service engineers. Requires only 10 minutes.
Take your number of applications
to new levels
Glasses, plastic bottles, cosmetic dispensers, metal cups, cans, thermos, tumblers and more.
CANS
PACKAGING
GLASSES
BOTTLES & THERMOS
CANS
LABELS & STICKERS
Compatible printers
with the new Kebab HS

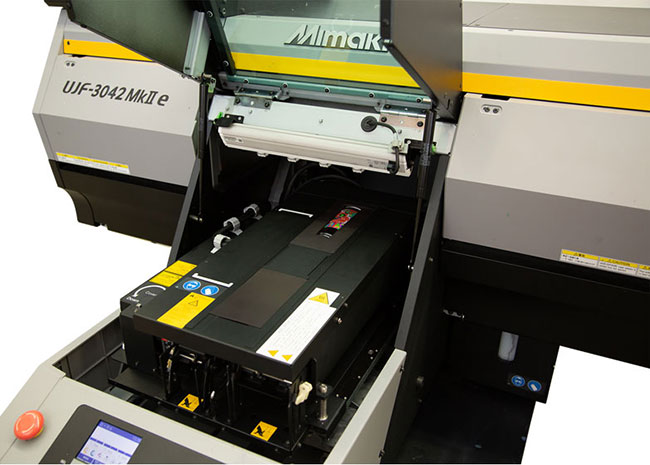

The Kebab HS is compatible with the UJF-MkII e series and UJF-7151 plusII printers as an optional item.
If you have already purchased your UJF printer (or planning to), you will be entitled to an exclusive loyalty discount* on your new Kebab HS! Simply fill in the form below and a local Mimaki partner will be in touch to arrange your combo deal.
*Promotion valid until 26.09.2024. Conditions apply.
| Item | Kebab HS | Kebab MkII | Kebab MkII L | |
| Compatible models | UJF-7151 plusII / UJF-3042 MkII e / UJF-6042 MkII e | UJF-3042 MkII e | UJF-6042 MkII e / UJF-7151 plusII / UJF-7151plus | |
| Rotation method | The workpiece rotates on a rotating shaft | The workpiece rotates on a contact roller | ||
| Workset | The workpiece is fixed with a chuck | The workpiece is placed on the roller | ||
| Shape | Cylindrical shape is preferred. Aperture shapes are acceptable, but gourd shapes are not recommended. | Cylindrical workpieces with minor surface irregularities will rotate freely | ||
| Tapered media shape | Compatible with tapered media (angle 7.5°*) | Not supported | ||
| Printing method | Single colour, separate edition printing | Colour simultaneous printing | ||
| Drawn size | Diameter | 50mm~100mm | 10mm~110mm | |
| Length | 30~280mm(*When using the attached chuck) | 30~300mm | 30~600mm | |
| Drawable range | X | 300mm or less | Full circumference of workpiece | |
| Y | Full circumference of workpiece | 300mm or less | 600mm or less | |
| Workpiece weight | UJF-MkII e: 2kg or less; 7151 plusII: 3kg or less | Small diameter: 1.5kg / Large diameter: 2.0kg or less | ||
| Compatible inks | LH-100 / LUS-120 | LH-100 / LUS-120 | LH-100 / LUS-120 LUS-350 (UJF-7151 plusII) | |
| Interface | Connect to printer with dedicated connector | Connect to printer with dedicated connector | ||
| Weight of main unit | 12.9kg | 3kg | 6kg | |
| Dimensions (WxDxH) | 366x536x150mm | 366x301x50mm | 674x301x50mm | |
*For workpieces with a large diameter exceeding 86mm, angle adjustment is unavailable, and the maximum tilt angle will be reduced.

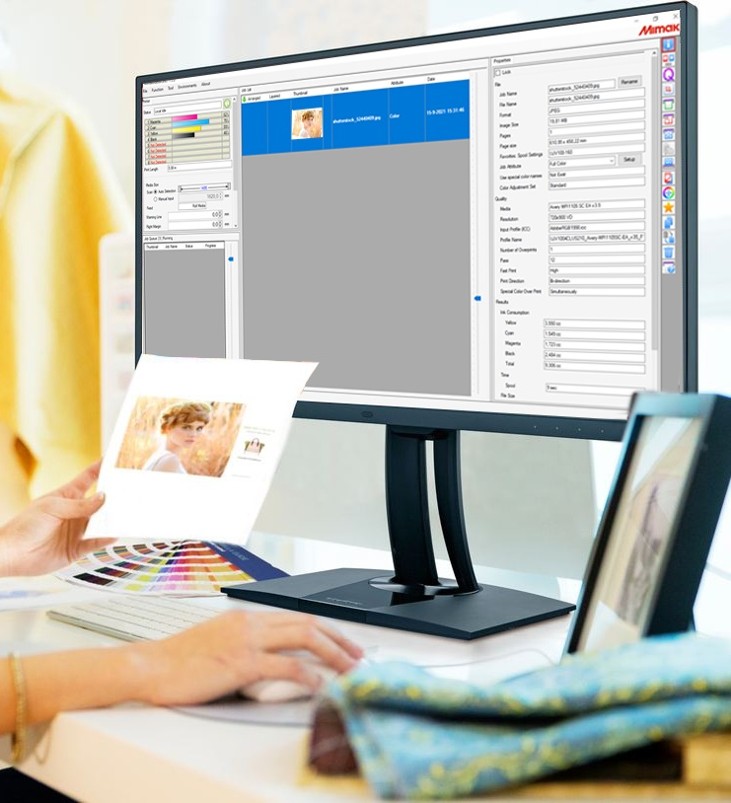

Software RIP
Mimaki’s dedicated software RIP, comes in the box. Rasterlink7 is equipped with more useful and advanced functions.
Rasterlink7
Software RIP combining usability and high performance.
