TS3-1600 High Speed, Continuous Dye Sublimation Printer
The Mimaki TS3-1600 dye sublimation printer offers outstanding cost performance and great creative potential. It is especially suited for personalised and on-demand jobs for apparel applications, such as sports- and swimwear, workwear, jackets, scarves, ties, and furnishing type of applications.
TS3-1600 delivers •••
- Head height adjustment prevents head strikes due to cockled transfer paper
- Continuous printing with the UISS (Uninterrupted Ink Supply System)
- New ink with high density, brilliant sublimation transfers and original RIP
- Outstanding cost performance suitable for starting on-demand print business
- New high density, brilliant dye sublimation ink: Sb52
Applications
Applications of TS3-1600
Substrates
Transfer paper.
Applications
Soft signage, flags, jerseys, jackets, shirts, scarves, swimwear, furnishing and interior design.
Specifications
Specifications of TS3-1600
| Print head | On-demand Piezo head (180 nozzles x 8 lines x 1 head) |
| Maximum print width | 1,610 mm |
| Print resolution | 540, 720, 1440 dpi |
| Print speed | 12.3 sqm/h (4 colours, 540 x 1080 dpi, 6 pass, bi-directional) 6.3 sqm/h (6 colours, 540 x 1080 dpi, 12 pass, bi-directional) |
| Ink type | Dye sublimation ink (Sb51, Sb52 ink) |
| Ink supply system | 4-colour mode : 440 cc cartridge x 2/colour, 880 cc/colour 6-colour mode : 440 cc cartridge x 1/colour, 440 cc/colour *wih the bulk ink system TS3-1600 can hold up to 8 x 2L bags (4 colours) |
| Media | Width : Up to 1,620mm Weight : Up to 25 kg Inside roll diameter : 2-3 inch |
| Drying device | 3 way intelligent heater (Pre/Print/After), ventilation fan unit, drying fan heater |
| Media take up device | Roll take-up device, inside/outside selectable |
| Interface | USB 2.0 |
| Power specifications | AC 100V to 120V ± 10%, AC 220V to 240V ± 10% , 50/60 Hz ± 1 Hz |
| Power consumption | 1,440 VA or below |
| Dimensions (w x d x h) | 2,538 x 739 x 1,424 mm |
| Weight | 160 kg |
Features
Features of TS3-1600
High print quality and high speed printing
A newly developed high speed print head containing 180 nozzles x 8 lines delivers high speed prints and maintains the high print quality. Print quality in 4-color bidirectional mode is also improved using a “symmetric ink arrangement”.
Unattended continuous printing
Uninterrupted Ink Supply System (UISS)
The UISS allows for continuous printing in 4-colour mode. When one ink cartridge runs out, another cartridge of the same colour begins supplying ink. Ink cartridges can be changed during printing.
Mimaki Bulk Ink System (MBIS) – optional
The bulk ink system is an eco-friendly ink system that produces less waste while achieving continuous printing. It uses 2-litre ink packs and achieves as stable and reliable ink ejection as printing solely with cartridges. It is possible to use both 2-litre ink packs in combination with regular 220/440cc cartridges.
Head height adjustment to prevent head strikes
The head height can be adjusted in three steps from 2 mm up to 5 mm to suit media thickness and to ensure smooth media handling.
Automatic drying fan to increase drying speed (optional)
Drying speed is improved with the use of a post-heater and optional drying fan. The take up device can be used even when printing at high speed.

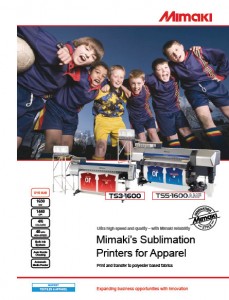

Brochure
Brochure of TS3-1600
Please find the Mimaki TS3-1600 brochure below. Click the image to see the brochure.
