JV33 Series Superb Value Large Format Printers
Mimaki’s JV33 Series with wide format inkjet printers (1.3 m and 1.6 m) offer a superb mix of high quality output, high speed printing, and user-friendly operation at an affordable price; the best return on your investment.
JV33 Series delivers •••
- Printing up to 17.5 sqm/h (quality print mode: 11.9 sqm/h)
- Exclusive mild solvent and eco solvent inks available, including white ink (SS21 ink)
- Print and cut combo with the CG-FXII series cutting plotters
- Unattended continuous printing with UISS
- Also available as water based model for dye sublimation transfer printing and aqueous pigment inks for indoor applications
JV33 BS: Ultimate costperformance
The JV33 BS is specifically available to non-European Union countries
Available in three sizes (137, 162, 264 cm), JV33 BS Series offers a superb mix of high quality output, high speed printing, and user friendly operation at an affordable price, achieving the ultimate cost performance.
JV33 BS Series delivers •••
- JV33 BS Series delivers truly high quality print of 1440 dpi
- JV33 BS Series can utilize two cartridges per colour in 4-colour mode
- BS2 Ink; Mimaki’s original affordable Solvent Ink
Applications of JV33 Series
Vinyl, banner, paper, canvas, (blueback) paper, PET. Transparent and coloured substrates can be used in combination with SS21 white ink.
Applications of JV33 Series
Banners, backlit signs, pop displays, floor graphics, labels, posters, high quality stickers, vehicle wrap, window signage and more.
JV33 series is also available as aqueous models for dye sublimation transfer printing and indoor graphics.
Specifications of JV33 Series
|Print head||On-demand piezo head (180 x 8 lines) x 1 head|
|Maximum print width||JV33-130: 136 cm
JV33-160: 161 cm
|Printing resolutions||540, 720, 1440 dpi|
|Ink type||Exclusive solvent ink: ES3 ink, SS21 ink
(dye sublimation inks and pigment inks for aqueous models)
JV33-BS (only available at non EU countries): BS2 ink
|Ink capacity||4-colour mode: 440 cc cartridge x 2 / colour, 880 cc /
6-colour mode: 440 cc cartridge x 1 / colour, 440 cc / colour
White and silver ink available
BS2 Ink: 4-colour mode: 600 cc ink pack x 2/colour, 1200 cc/colour
|Media Size||JV33-130: 21-137 cm
JV33-160: 21-162 cm
|Roll weight||JV33-130/160: max. 25 kg
JV33-260 max. 100kg
|Roll inside diameter||2 or 3 inch|
|Media heater||Triple stage intelligent heater (pre/print/post)|
|Power consumption||Less than 1,440VA|
|Dimensions (w x d x h)||JV33-130: 229 cm x 74 cm x 142 cm
JV33-160: 254 cm x 74 cm x 142 cm
|Weight||JV33-130: 145 kg
JV33-160: 160 kg
Features of JV33 Series
High resolution and high speed printing
With its increased print head accuracy, the JV33 Series delivers truly high quality print of 1440 dpi. In addition, the improved ink firing frequency has increased the print speed by 30% over the JV3 Series.
JV33 Print speeds
When printing in 6-colour mode, the speed is approximately 50% lower.
Two solvent inks available
SS21 solvent ink
SS21 fast drying solvent ink enables immediate cutting after printing and eliminates peeling when cut. Mimaki’s innovative SS21 white ink is available for printing on transparent and coloured substrates, such as window decoration.
ES3 eco-solvent ink
Virtually odourless and user-friendly ink that does not require any special ventilation. Available in white and silver ink for producing more vivid colours and creating stunning metallic effects.
JV33 is also available as aqueous models for dye sublimation inks and pigment inks.

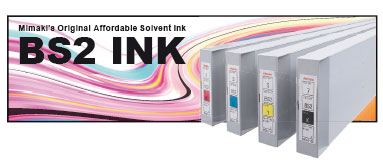

JV33 BS: BS2 Ink
Non EU countries only
Not only is BS2 ink very affordable, but it also achieves high drying capacity and minimal ink bleeding. Other benefits include high scratch resistance and a wide colour gamut. Additionally, BS2 ink users enjoy one-year Mimaki warranty, which includes print heads. BS2 ink is available in 600 ml replaceable ink packs.
Unattended continuous printing
Uninterrupted Ink Supply System (UISS)
Standard on JV33 is the Uninterrupted Ink Supply System. This system allows for continuous printing in 4-colour mode. A maximum of 880 cc ink per colour can be loaded at one time. When one ink cartridge runs out, another cartridge of the same colour begins supplying ink. Ink cartridges can be changed during printing. With 880 cc of ink, a 50 m roll of media can be printed without interruption.
Mimaki Bulk Ink System (MBIS) – optional
The bulk ink system is an eco-friendly ink system that produces less waste while achieving continuous printing. It uses 2-litre ink packs and achieves as stable and reliable ink ejection as printing solely with cartridges. It is possible to use both 2-litre ink packs in combination with regular 220/440cc cartridges.
Other Useful Functions
Triple Stage Intelligent Heater
The triple stage intelligent heater automatically heats up the media to the appropriate temperature. Thereby improving the performance of the ink. The mounted post-heater quickens the drying time and thus enables a fast take-up of the media.
Stable media feeding
The multi point grid roller system ensures stable feeding of the media, which is especially important for long unattended print runs.
Standard included RIP software
The high performance RasterLink RIP software helps you to utilise the various functions of the JV33 series.
